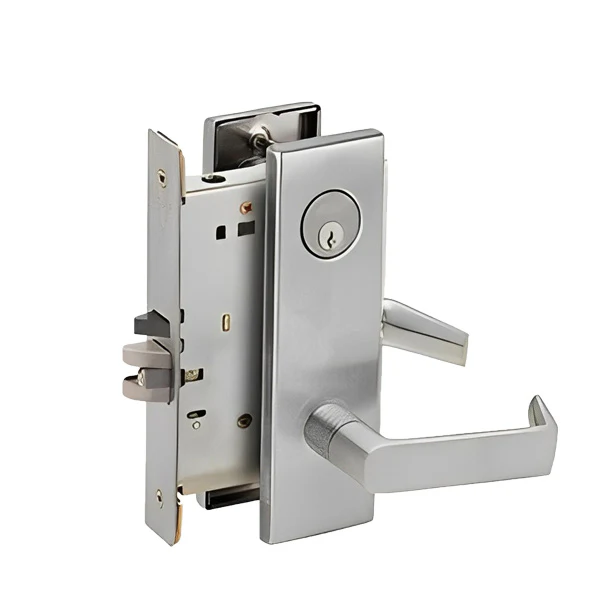

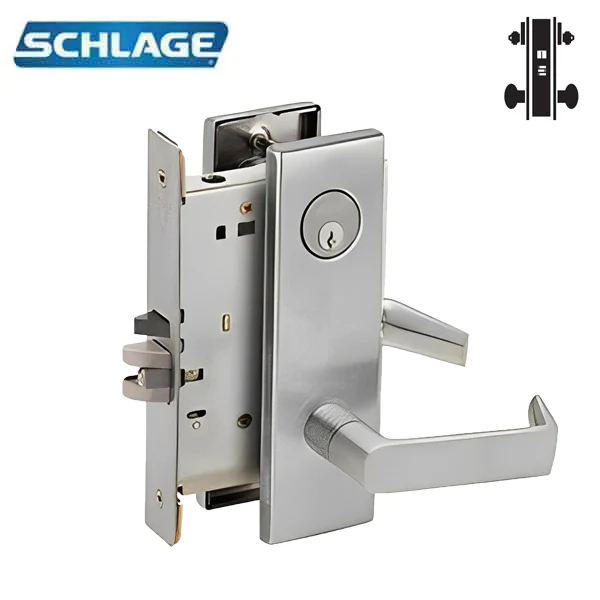

The Schlage L Series has long been the benchmark for mortise locks.
Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of almost every application.

Features

• Exceeds ANSI/BHMA Grade 1 Security and Operational standards
• UL listed for 3-hour fire door
• Meet ADA requirements
• 478 ANSI Strike

Specifications

Lock Function	9060 - Apartment Entrance Lock - Latchbolt retracted by knob/ lever from either side unless outside is locked by key from inside When locked, latchbolt retracted by outside key or inside knob/lever Auxiliary latch deadlocks latchbolt when door is closed Inside lever always free for immediate egress
Door Thickness	1-3/4"
Cylinder	10-072 cylinder keyed different, with 2 keys
Backset	2-3/4"
Keyway	Schlage C Keyway
Latch	3/4" (19 mm) throw stainless steel latch with anti-friction tongue
Material	Stainless Steel / Zinc
Case size	4-7⁄16" x 6-1⁄16" x 1"
Strike	1-1/8" x 3-1/2" (29 mm x 89 mm) with dust box
Armored Row	1-1/4" x 8" x 7/32" standard
Fire Rating	“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated
Certifications	ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1
Manufacturer Warranty	Limited lifetime mechanical warranty
