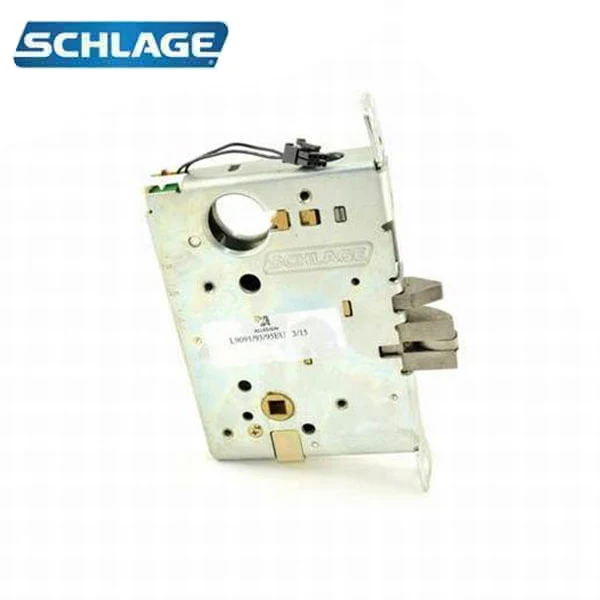

The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today.

Features

• Electrified Lock Body
• L Series
• Grade 1

• Made With Strong Materials

Specifications

Lock Function	9091LB-Electrified Mortise Lock Body Field Selectable (Safe/Secure)
Handing	Non Handed - Field Reversible
Door Thickness	1 3/4" (44 mm)
Backset	2 3/4" (70 mm) only
Bolt Projection	3/4 In.
Material	Stainless Steel / Zinc
Amp Draw	400mA
Lock Face Size	8 In. X 1-1/4 In.
Strike	10-072 Strike
Certifications	ANSI/BHMI Certified A156.13-2012 Commercial Grade 1 Lock Body Mortises Inside the Edge of the Door UL Listed for 3 Hour Fire Door
Manufacturer Warranty	3 year limited mechanical and 1 year limited electromechanical

Downloads:

• Spec Sheet
