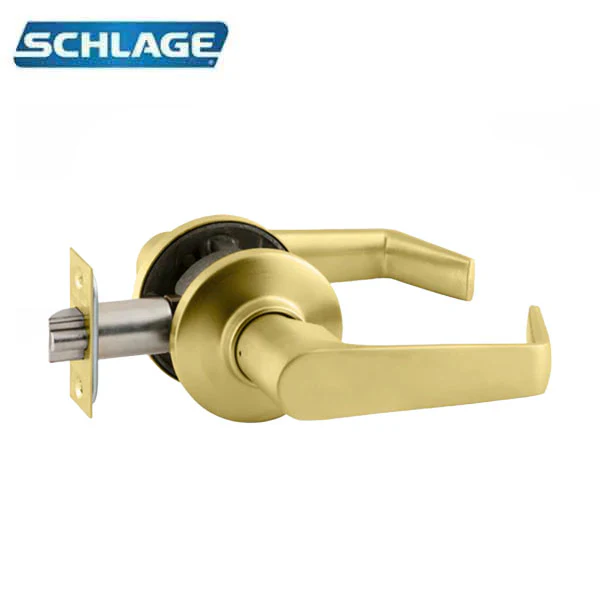

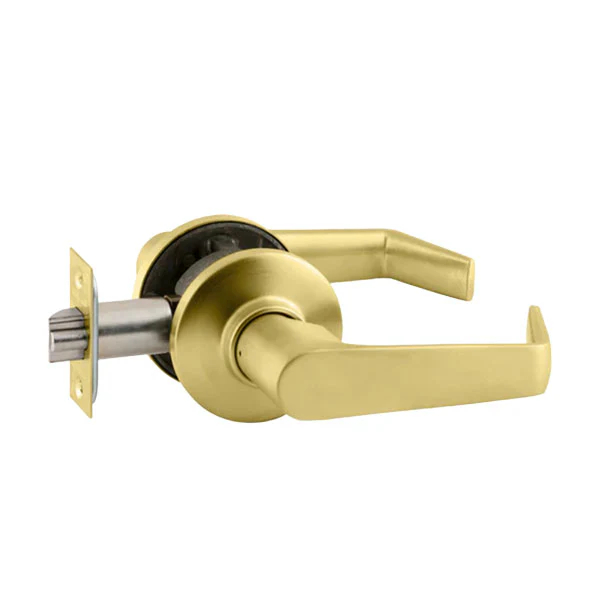

Schlage's S-Series locks provide reliable, cost-effective performance for entrance doors and interior passages where heavy-duty levers may not be required. This unkeyed lever lock is specially designed for both light/medium commercial and multi-housing applications. It features heat-treated steel locking components for extra strength. Two independent heavy-duty torsion springs add durability and long life.

Features:

• Exceeds ANSI/BHMA Grade 2 requirements

• UL listed for 3-hour fire door

• Heat-treated steel locking components for extra strength

• Patented Everest 29™ S123 keyway is provided standard which prohibits unauthorized key duplication

• Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
• Six functions include keyless, dummy, and single-cylinder options
• Adjustable backset has a lock-in-place helix design
• Independent heavy-duty lever torsion springs for durability and long life
• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Specifications

Chassis	Tubular Construction. Zinc with steel cover
Material	Pressure cast zinc
Door Thickness	1-3/8″ to 2″
Lock Function	Passage Function (F75)
Handing	Non-Handed
Lever	Saturn Lever (SAT)
Rose	Wrought brass, bronze or zinc plated to match finish specification
Finish	606 - Satin Brass
Backset	2 3⁄4"
Faceplate Size	1" x 2 1⁄4" square corners
Latch	1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
Strike	T-Strike 1/8” x 2 3/4” x 1 1/8” lip to center with box standard
Fire Rated	UL/cUL listed up to 3 Hours – UL symbol on the latch front
Certifications	Certified A156.2-2011 Series 4000, Grade 2; exceeds standard for lever and spindle strength and durability
Manufacturer Warranty	Commercial: Three-year Manufacturers limited
