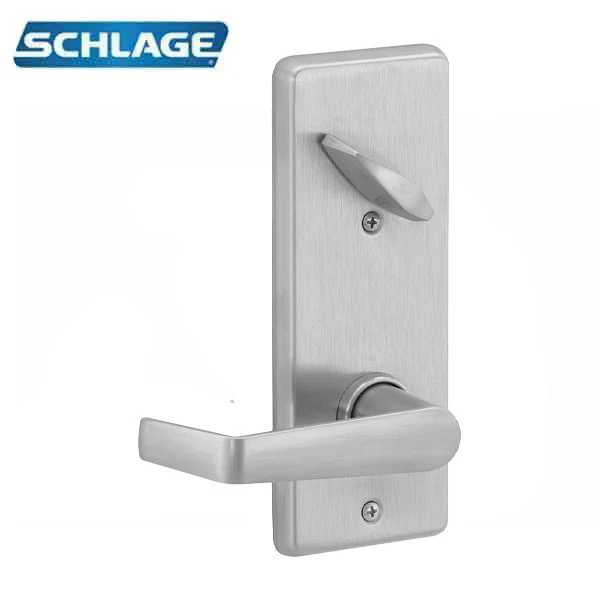

The Schlage S200 interconnected locks are made to provide consistent security and simple escape. With an emphasis on durability, safety, and security, this lock has undergone over 400,000 ANSI cycles of testing. The S200 Series locks are intended for use in a broad range of settings, including multi-family and small hotel/motel buildings as well as military accommodation. People and property are kept safe with this lock, which is simple to install, service, and maintain.



Feature	Description
Series	S200 Series interconnected
Grade	Grade 2
Base Material	Brass Bronze
Deadbolt Dimensions	1" x 2-1/4"
Door Handed	Non-handed
Door Range (Thickness)	1-3/8" - 2"
Function	210 - Entrance Single Locking
Keyway	N/A
Latch Description	Dead Latch
Latch Dimensions	1" x 2-1/4"
Strike Description	T-Strike x Square Corner Strike
Strike dimensions	2-3/4"
Strike Number	10-094 & 10-001
Strike Type	T-Square Corner
Strike Width	1-1/8"
Leverknob Design	SAT - Saturn Lever
Latch Number	16-481
Latch Backset DIM	Adjustable 2-3/8" and 2-3/4"
Bolt protection	1/2" Latch, 1" Bolt
Finish Description	Satin Chrome
Finish	626/US26D Satin Chrome
Manufacturer	Schlage
Dust Box	Plastic
ANSI Function	F95 - Interconnected Entrance Single
Cylinder Type	Less Cylinder
Subtype	Less 6-Pin Cylinder



Downloads:

• Series Catalog
