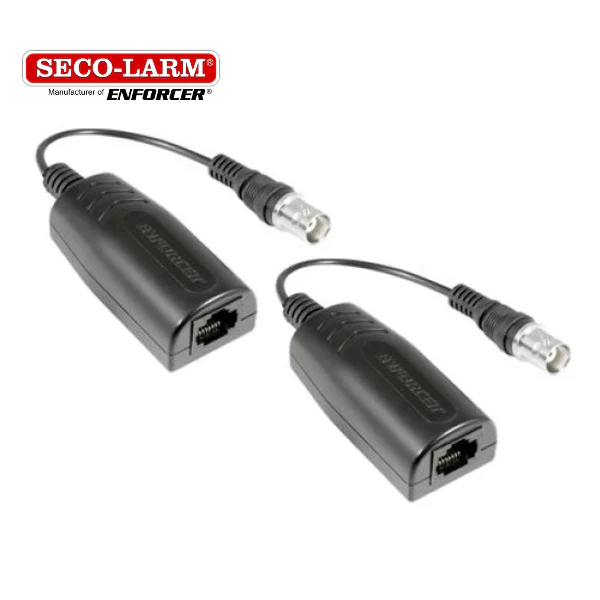

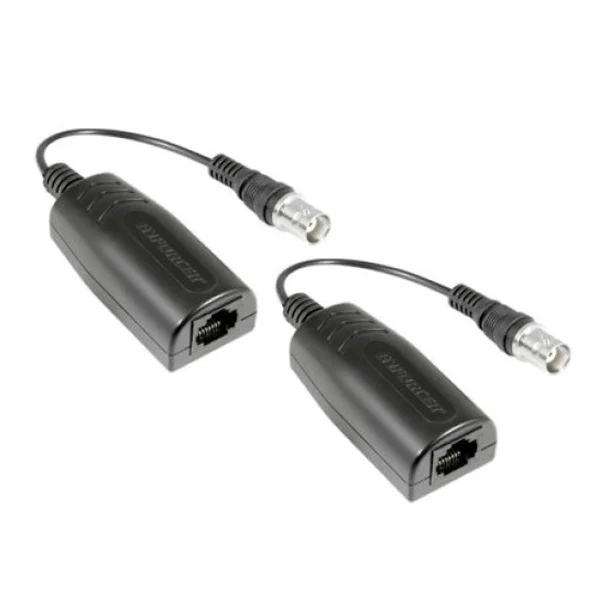

Seco-Larm - SLM-NE-SE01-020Q - Passive Ethernet Extender over Coax - Up to 650ft (200m)

Product image 1
1 / 2

Seco-Larm - SLM-NE-SE01-020Q - Passive Ethernet Extender over Coax - Up to 650ft (200m)

ENFORCER Passive Ethernet Extender over Coax is designed to extend the range of any TCP/IP device beyond the 300ft (100m) limit of Ethernet. The unit does not filter out any protocols, codes, or applications, compatibility with any IP camera and its software.

  • 1 Channel Ethernet over coax
  • 10/100 Mbps Full duplex*
  • Transmission distance:
    Up to 650ft (200m)@10Mbps
    Up to 325ft (100m)@100Mbps
  • Passive, no power required
  • Built-in surge protection
  • Fast and easy to install
  • Bidirectional – can operate as transmitter and receiver



    Specifications

    Range 10Mbps Up to 650' (200m), 100Mbps Up to 325' (100m)
    Input Connector RJ45
    Output Connector BNC
    Standard IEEE802.3 10Base-T/100Base-T
    Link Cable RG59/U or better
    Ethernet Speed 10/100 Mbps
    Operating Temperature -4º~131º F (-20º~55º C)
    Dimensions 2-3/8” x 1-1/8” x 13/16” (60 x 29 x 20 mm)


    Specifications

    Manual

    $8.53

    Original: $24.38

    -65%
    Seco-Larm - SLM-NE-SE01-020Q - Passive Ethernet Extender over Coax - Up to 650ft (200m)—

    $24.38

    $8.53

    Product Information

    Shipping & Returns

    Description

    ENFORCER Passive Ethernet Extender over Coax is designed to extend the range of any TCP/IP device beyond the 300ft (100m) limit of Ethernet. The unit does not filter out any protocols, codes, or applications, compatibility with any IP camera and its software.

    • 1 Channel Ethernet over coax
    • 10/100 Mbps Full duplex*
    • Transmission distance:
      Up to 650ft (200m)@10Mbps
      Up to 325ft (100m)@100Mbps
    • Passive, no power required
    • Built-in surge protection
    • Fast and easy to install
    • Bidirectional – can operate as transmitter and receiver



      Specifications

      Range 10Mbps Up to 650' (200m), 100Mbps Up to 325' (100m)
      Input Connector RJ45
      Output Connector BNC
      Standard IEEE802.3 10Base-T/100Base-T
      Link Cable RG59/U or better
      Ethernet Speed 10/100 Mbps
      Operating Temperature -4º~131º F (-20º~55º C)
      Dimensions 2-3/8” x 1-1/8” x 13/16” (60 x 29 x 20 mm)


      Specifications

      Manual
