Simplex - L8146M-26D-41 - Mortise Combination Lever Lock - Key Override/Passage/Lockout - Medeco/Yale/ASSA/Abloy LFIC Prep - Less Core - Satin Chrome 626/US26D Finish
Simplex - L8146M-26D-41 - Mortise Combination Lever Lock - Key Override/Passage/Lockout - Medeco/Yale/ASSA/Abloy LFIC Prep - Less Core - Satin Chrome 626/US26D Finish

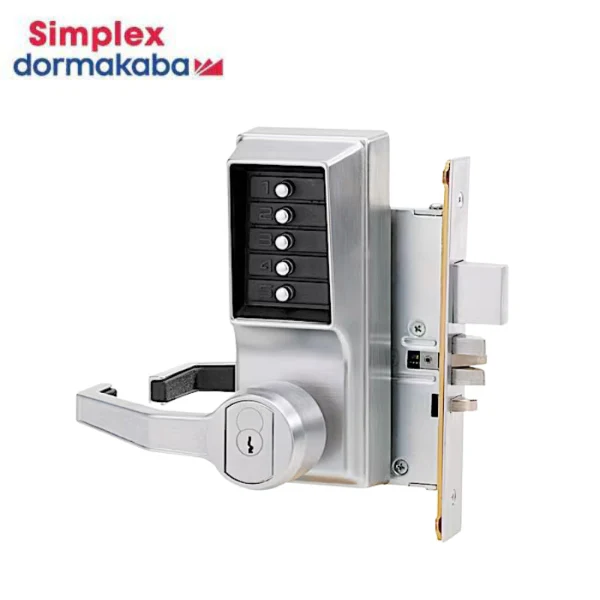

The Simplex L8146M-26D-41 is a mechanical pushbutton lock from Dormakaba's Simplex 8100 Series. Designed for commercial applications, it offers keyless entry with mechanical reliability, eliminating the need for batteries or electronic components. It also eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.
Specifications:
-
Grade: ANSI/BHMA Grade 1 (highest commercial grade).
-
Backset: 2-3/4" (70 mm).
-
Door Thickness: 1-3/4" to 2-1/4".
-
Bolt Throw Length: 3/4" (19 mm) two-piece anti-friction latch.
-
Strike Plate: 4-7/8" L x 1-1/4" W x 1/4" D.
-
Construction: Cast front housing with unified trim plate; fixed ADA-compliant lever.
-
Keypad: Vandal-resistant, solid metal pushbuttons.
-
Programming: Easily programmed via keypad without removing the lock from the door.
-
Weight: Approximately 9.8 lbs (4.4 kg).
-
Fire Rating: UL listed for 180 minutes.
-
Compliance: ADA compliant.
Original: $588.09
-65%$588.09
$205.83Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Simplex L8146M-26D-41 is a mechanical pushbutton lock from Dormakaba's Simplex 8100 Series. Designed for commercial applications, it offers keyless entry with mechanical reliability, eliminating the need for batteries or electronic components. It also eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.
Specifications:
-
Grade: ANSI/BHMA Grade 1 (highest commercial grade).
-
Backset: 2-3/4" (70 mm).
-
Door Thickness: 1-3/4" to 2-1/4".
-
Bolt Throw Length: 3/4" (19 mm) two-piece anti-friction latch.
-
Strike Plate: 4-7/8" L x 1-1/4" W x 1/4" D.
-
Construction: Cast front housing with unified trim plate; fixed ADA-compliant lever.
-
Keypad: Vandal-resistant, solid metal pushbuttons.
-
Programming: Easily programmed via keypad without removing the lock from the door.
-
Weight: Approximately 9.8 lbs (4.4 kg).
-
Fire Rating: UL listed for 180 minutes.
-
Compliance: ADA compliant.
