Simplex - LL1076S - Pushbutton Cylindrical Lever Lock - Combination Entry/Privacy Lockout Function with Key Override - 2¾" Backset - 3/4" Throw Latch - Schlage FSIC Prep - Less Core - Left Hand/Left Hand Reverse - Satin Chrome 626/US26D Finish
Simplex - LL1076S - Pushbutton Cylindrical Lever Lock - Combination Entry/Privacy Lockout Function with Key Override - 2¾" Backset - 3/4" Throw Latch - Schlage FSIC Prep - Less Core - Left Hand/Left Hand Reverse - Satin Chrome 626/US26D Finish

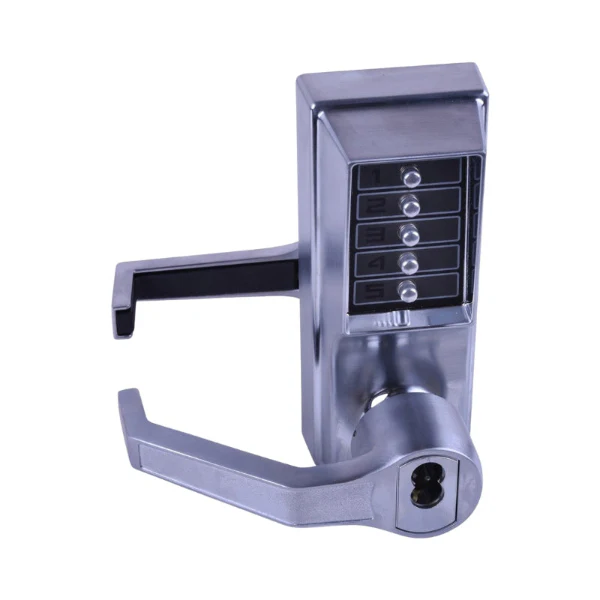

The DormaKaba Simplex LL1076S is a mechanical, heavy-duty, cylindrical push-button lever lock offering single-code combination entry with privacy lockout and a Schlage FSIC key override option (core not included). It is factory-configured for left-hand or left-hand reverse doors and finished in satin chrome (US26D). This battery-free, durable lock is engineered for secure access in commercial environments.
| DormaKaba Simplex LL1076S-26D-41 - Technical Specifications | |
|---|---|
| Brand / Series | Kaba Simplex, L1000 Series |
| Function | Combination entry with privacy lockout; key override capable |
| Cylinder Prep | Schlage LFIC housing, less core |
| Handing | Left Hand or Left Hand Reverse (factory-handed, non-reversible) |
| Backset | 2¾″ standard |
| Latch Type & Throw | Dead latch with ¾″ throw; 1″ latch bore diameter |
| Door Thickness | 1⅜″–2¼″ (pre-assembled for 1⅝″–2″) |
| Minimum Stile | 5″ |
| Bore & Cut-Outs | 2⅛″ cross bore; ANSI/ASA strike plate (1¼″ × 4⅞″) included |
| Escutcheon Dimensions | 3⅛″ × 8⅞″; projection approx. 3⅞″ |
| Material & Finish | Brass/bronze housing; satin chrome (US26D) finish |
| Lever & Keypad | ADA-compliant fixed lever; vandal-resistant metal pushbuttons |
| Certifications | ANSI/BHMA Grade 1, UL Listed (3‑hour fire-rated), ADA compliant |
| Weight & Dimensions | Approx. 9.2 lb; escutcheon 3⅛″ × 8⅞″, projection ~3⅞″ |
| UPC | 840067622797 |
| Origin | Made in Mexico |
Original: $508.92
-65%$508.92
$178.12Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The DormaKaba Simplex LL1076S is a mechanical, heavy-duty, cylindrical push-button lever lock offering single-code combination entry with privacy lockout and a Schlage FSIC key override option (core not included). It is factory-configured for left-hand or left-hand reverse doors and finished in satin chrome (US26D). This battery-free, durable lock is engineered for secure access in commercial environments.
| DormaKaba Simplex LL1076S-26D-41 - Technical Specifications | |
|---|---|
| Brand / Series | Kaba Simplex, L1000 Series |
| Function | Combination entry with privacy lockout; key override capable |
| Cylinder Prep | Schlage LFIC housing, less core |
| Handing | Left Hand or Left Hand Reverse (factory-handed, non-reversible) |
| Backset | 2¾″ standard |
| Latch Type & Throw | Dead latch with ¾″ throw; 1″ latch bore diameter |
| Door Thickness | 1⅜″–2¼″ (pre-assembled for 1⅝″–2″) |
| Minimum Stile | 5″ |
| Bore & Cut-Outs | 2⅛″ cross bore; ANSI/ASA strike plate (1¼″ × 4⅞″) included |
| Escutcheon Dimensions | 3⅛″ × 8⅞″; projection approx. 3⅞″ |
| Material & Finish | Brass/bronze housing; satin chrome (US26D) finish |
| Lever & Keypad | ADA-compliant fixed lever; vandal-resistant metal pushbuttons |
| Certifications | ANSI/BHMA Grade 1, UL Listed (3‑hour fire-rated), ADA compliant |
| Weight & Dimensions | Approx. 9.2 lb; escutcheon 3⅛″ × 8⅞″, projection ~3⅞″ |
| UPC | 840067622797 |
| Origin | Made in Mexico |
