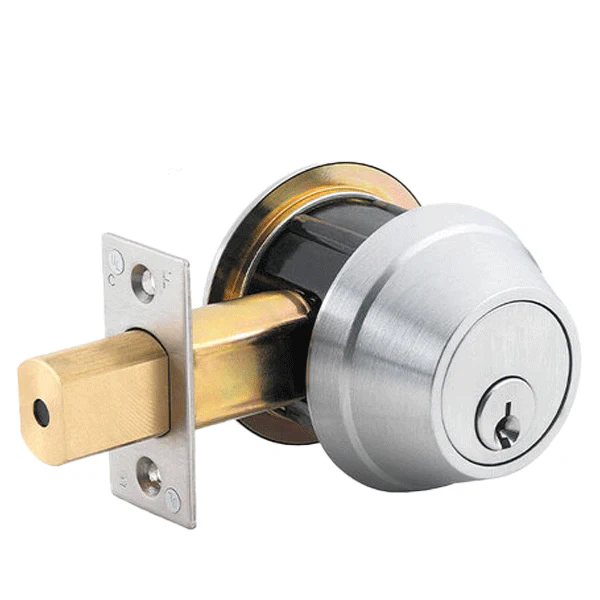

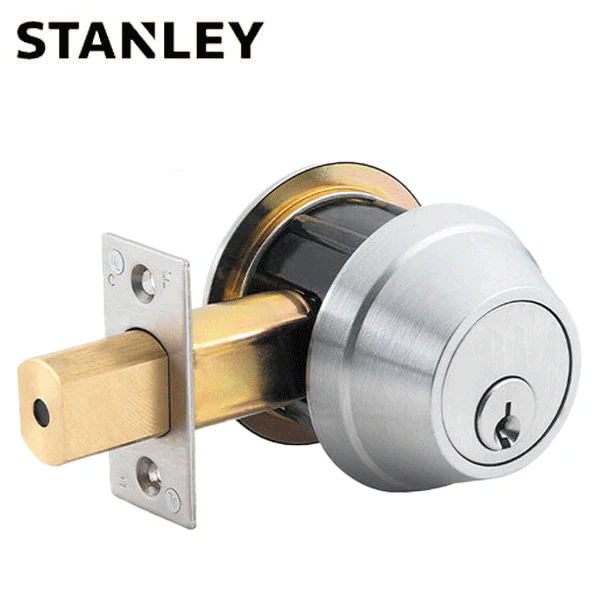

STANLEY Commercial Hardware's QDB100 line of ANSI/BHMA Grade 1 deadbolts provides strength, durability, and reliability for high-security applications. We designed the QDB100 Series with solid forged housing for added strength and performance life and then added anti-drill and saw-resistant features to deliver even greater security for a long-lasting, reliable deadbolt solution. From standard door prep to packaging designed for quicker installation, the QDB100 Series is simple to order and install or retrofit in a wide variety of high-security applications.

Features:

• Tested to meet grade 1 specification of 250,000 cycles.
• Solid forged housing enhanced strength and durability
• Full 1" (25.4mm) throw bolt with saw-resistant hardened steel roller pin
• Anti-Drill design - two (2) ball bearings inserted to prevent drill attacks
• ADA thumb turn
• Compartmentalized packaging allows for quick and easy installation

Specifications:

Exposed Trim	Solid forged brass, plated to match the  finish description
Door Range	1-3/8" (35mm) - 2" (51mm); service 8Q0082 spacer rings required for 1-3/8" doors
Backset	2-3/4" (70mm) square standard
Strike	Standard deadbolt strike 1-1/8" (32mm) x 2-3/4" (70mm); other options available
Door Prep	2-1/8" (54mm) diameter cross bore
Latch bolt	full 1" (25.4mm) throw with hardened steel roller
Latch faceplate	1-1/8" (29mm) x 2-1/4" (57mm) standard
Keying	6-pin non-IC brass cylinders
Keyway	Schlage C6
Finishes	626 Satin Chrome
Functions	QDB180 Single Cylinder
Certifications	ANSI/BHMA A156.5 Series - Grade 1  ANSI A117.1 Accessibility Code (ADA Compliant) UL/cUL Listed (3 hours) for "A" label single-door applications (4' x 8') (1.219m x 2.438m) UL10C/UBC 7-2 (1997) Positive Pressure Rated UL10B Pressure Rated California State Reference Code (formerly Title 19 -  Fire Marshal) Hurricane Compliant - (Miami-Dade N.O.A)
