TELL - CL102912 - LC2400 Series Heavy Duty Cylindrical Leverset - Matte Black - 2-3/4" Backset - Cortland Lever - Grade 2 - Optional Function

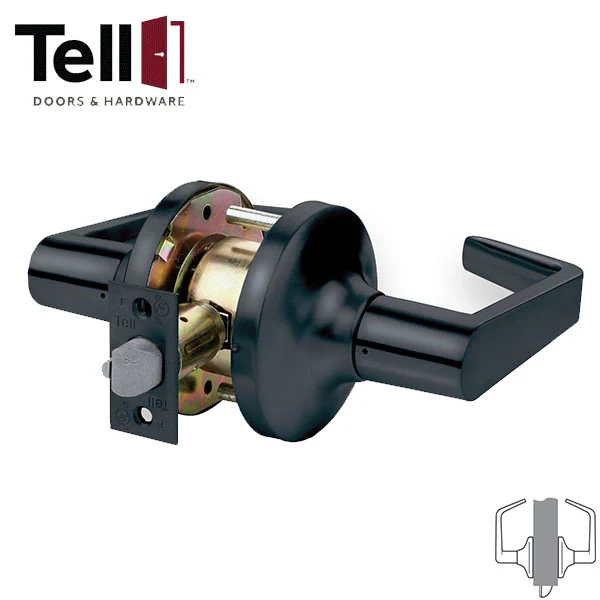

Product image 1
1 / 4

TELL - CL102912 - LC2400 Series Heavy Duty Cylindrical Leverset - Matte Black - 2-3/4" Backset - Cortland Lever - Grade 2 - Optional Function

The TELL 2400 Series Cortland Lever is a grade 2 cylindrical, heavy-duty lever in a matte black finish that can be used for entry, privacy, and/or passage. These levers can be used in new construction or replacement hardware fitting a standard 161 door prep.

    Performance Grade 2 heavy duty
    400,000 cycles
    Compliance UL/ULC listed for 3-hour fire door
    American Disabilities Act (ADA) ANSI A117.1
    ANSI A156.2, Series 400
    Chassis Cylindrical
    Steel - corrosion resistance
    Handle Lever, non-handed
    Styles: Cortland
    Latch 2-3/4" Backset
    1" Housing diameter
    1/2" Stainless steel throw
    1-1/8""x 2-1/4", Square corner faceplate
    Strike ASA Strike 1-1/4" x 4-7/8""
    Optional T-Strike 1-1/8" x 2-3/4"
    Optional F-Strike (full lip)
    Rose 3-1/2" diameter
    Cylinder SCC Standard, C keyway
    6-pin solid brass
    Keyed different (KD)
    Keys Two nickel silver per lock cylinder
    Door Preparation 1" Diameter for latchbolt
    Fits standard 161 door prep
    Door Range
    		 1-3/8" - 2"
    2-1/8" Diameter for lever
    Warranty Lifetime limited


    Downloads:

    Select Function
    From $21.36

    Original: $61.04

    -65%
    TELL - CL102912 - LC2400 Series Heavy Duty Cylindrical Leverset - Matte Black - 2-3/4" Backset - Cortland Lever - Grade 2 - Optional Function—

    $61.04

    $21.36

    Product Information

    Shipping & Returns

    Description

    The TELL 2400 Series Cortland Lever is a grade 2 cylindrical, heavy-duty lever in a matte black finish that can be used for entry, privacy, and/or passage. These levers can be used in new construction or replacement hardware fitting a standard 161 door prep.

      Performance Grade 2 heavy duty
      400,000 cycles
      Compliance UL/ULC listed for 3-hour fire door
      American Disabilities Act (ADA) ANSI A117.1
      ANSI A156.2, Series 400
      Chassis Cylindrical
      Steel - corrosion resistance
      Handle Lever, non-handed
      Styles: Cortland
      Latch 2-3/4" Backset
      1" Housing diameter
      1/2" Stainless steel throw
      1-1/8""x 2-1/4", Square corner faceplate
      Strike ASA Strike 1-1/4" x 4-7/8""
      Optional T-Strike 1-1/8" x 2-3/4"
      Optional F-Strike (full lip)
      Rose 3-1/2" diameter
      Cylinder SCC Standard, C keyway
      6-pin solid brass
      Keyed different (KD)
      Keys Two nickel silver per lock cylinder
      Door Preparation 1" Diameter for latchbolt
      Fits standard 161 door prep
      Door Range
      		 1-3/8" - 2"
      2-1/8" Diameter for lever
      Warranty Lifetime limited


      Downloads:
