APS-THMS5000

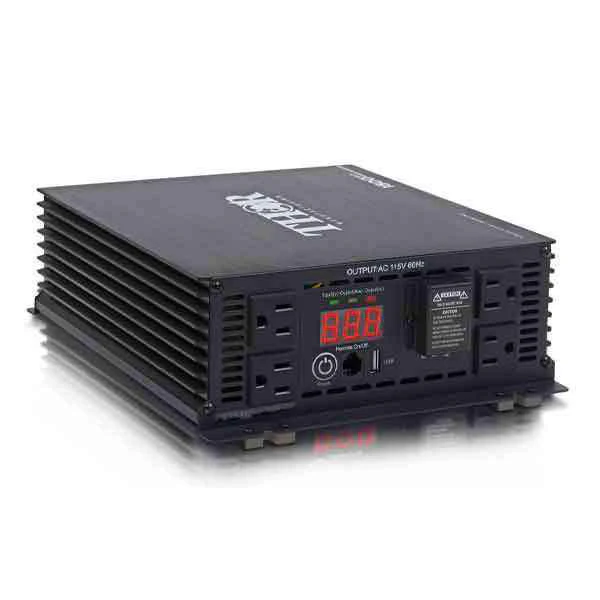

The THMS5000 is a 5000 Watt Power Inverter

• Powers up to 30 Amps
• Includes: USB 2.1
• Full Output Power: 5000 Watts
• High Surge

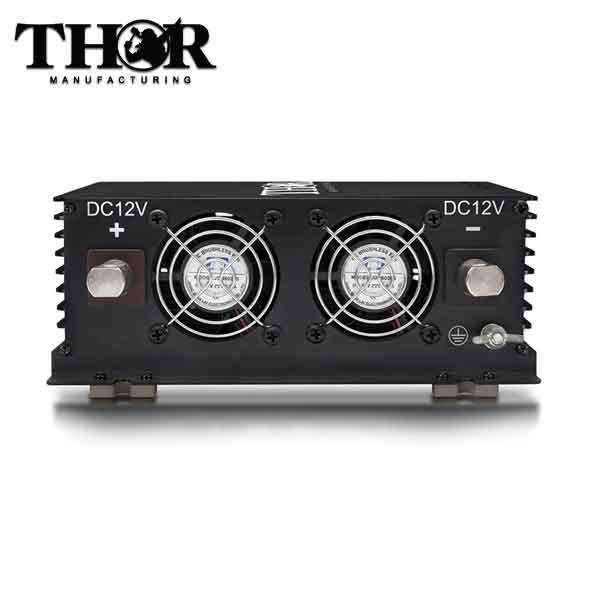

• High Speed Low Noise Cooling Fan
• Ground Fault Sensing

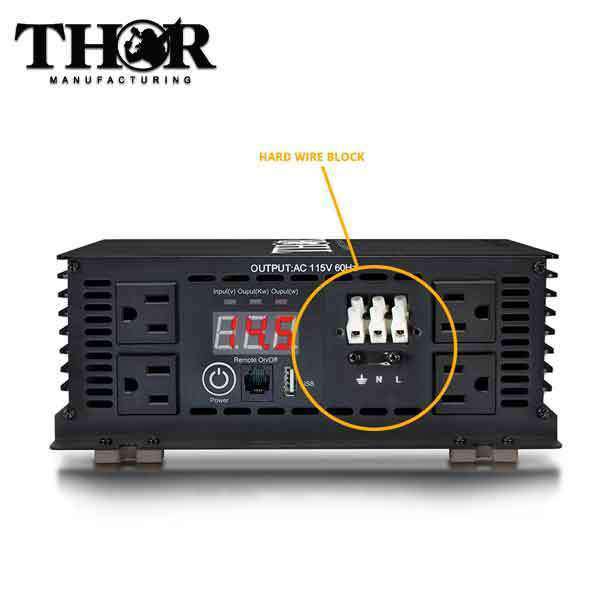

• New Hard Wire Block



Downloads

• Product Spec Sheet
• Technical Data
• Mechanical Drawing

Continuous output power:	5000 Watts
Surge power:	(peak power): 10,000 Watts
DC input / operating voltage:	11 to 16 Volts
Output voltage:	120 Volts ac / Output frequency: 60 Hz / Output wave form: modified sine wave
Battery low voltage shutdown:	9.5 +/- 0.5 Volts
High input voltage protection:	16.5 V +/- 0.5 Volts
No load current:	< 0.8 Amps
Full load efficiency:	>87%
AC Output Socket Type:	Quad Type 3 Prong
Fuse	Internal Fuse protection
Overload Protection	Inverter will automatically shut down if load exceeds inverter rating.
Smart Surge Control	Inverter will attempt to start loads above the continuous rating for up to 10 seconds.
Voltage Protection	Whenever the input exceeds 16.5 volts DC or is less than 10 volts, the inverter will automatically shutdown.
Short Circuit Protection	Automatically shuts down until short circuit is removed.
Thermal Cutoff	Automatically shuts down if internal temperature exceeds safe design parameters.
