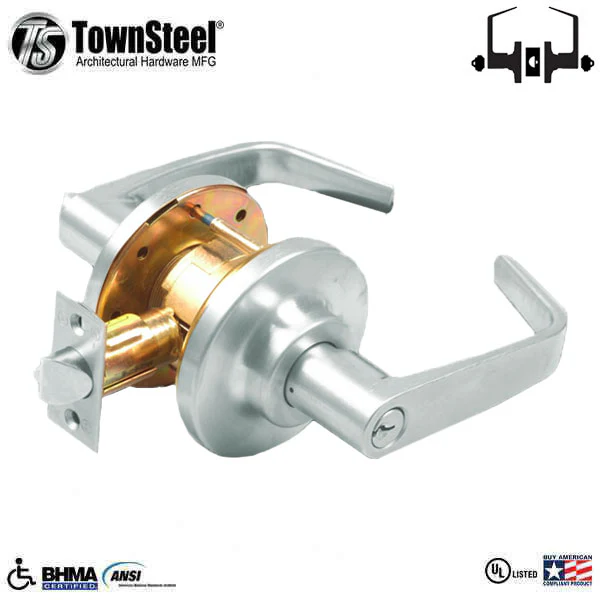

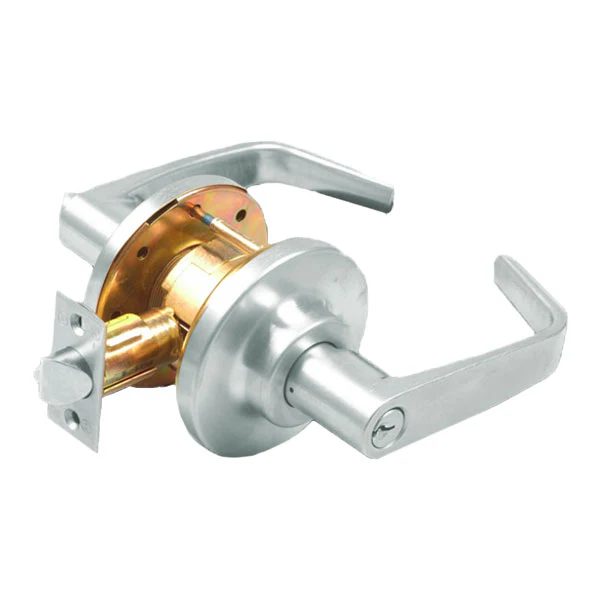

The CG-84-BC Series Cylindrical Lockset is Grade 2 certified, UL Listed, 3-Hour Fire Rated and ADA Compliant. Clutched lever trim. Independent torsion spring design provides effective lever support. Most BHMA functions are available. Easy installation

More Information Below

Specifications

Lock Function	ANSI F-84 Classroom
Handing	Non-Handed, ADA Compliant
Door Thickness	1-3/8″-2″ wood or metal doors
Backset	2-3/4″ standard,
Latch Bolt	Stainless steel, 1/2″ throw, deadlocking on keyed functions
Strike	ANSI strike standard
Cylinder	6-pin brass, Schlage “C” keyway, 2 keys per cylinder
Keying	Keyed different - KD (standard)
Trim Style	Solid Zinc Diecast Levers, Wrought Brass Roses and Concealed Screws
Finish	US26 - Bright Chrome
Certifications	ANSI/BHMA - A156.2-2011 4000 Series Grade 2 Certified UL - UL 10C 3-Hour Rated ADA - Meet Requirements of The Americans with Disabilities Act



Lock Function

Downloads

• Template and Installation Guide
