TNS-ED5500L-09-26D

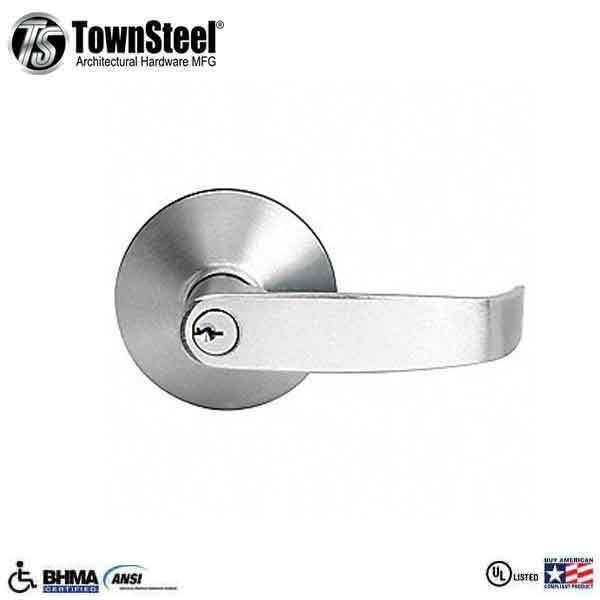

The ED5500L key-in-lever trim is designed to work with ED5500/ED5600 series devices.

More Information Below

Specifications

Application	Lever Trim Application For ED5500/5600 Series devices
Function	Night Latch (NL)= key retracts the latch momentarily to allow entry. When key is removed, the latch will extend and locks the door (momentary unlock) , key retracts latch bolt
Handing	Non-Handed
Door Thickness	1-3/4″ to 2-1/4″
Backset	2-3/4″ standard,
Door Prep	Fits and covers 161 cutout
Trim	Rigid in locked position
Rose	Wrought steel, 3-1/2″ in diameter
Lever	Cast zinc, 4-3/4″ long
Cylinder	Brass, 6 pin, Schlage “C” keyway, 2 keys per cylinder
Keying	Keyed different - KD (standard)
Finish	626 - 26D - Satin Chrome
Certifications	ANSI/BHMA - A156.2-2011 4000 Series Grade 1 Certified UL - UL 10C 3-Hour Rated ADA - Meet Requirements of The Americans with Disabilities Act BAA - Meet Guidelines of The Buy American Act CSFH - Sentinel and Quest Lever Designs meet California State Reference Code (CSFH)
Manufacturer Warranty	1-year limited for electronic 5-year limited for finish 10-year limited for mechanical

Downloads

• Template & Installation Guide
