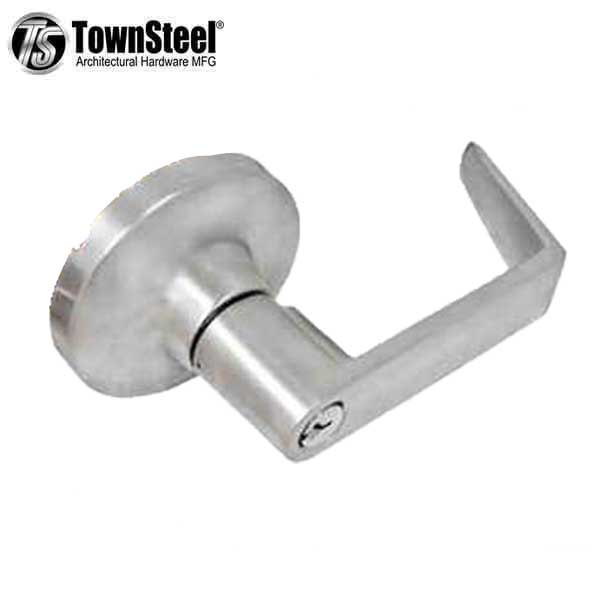

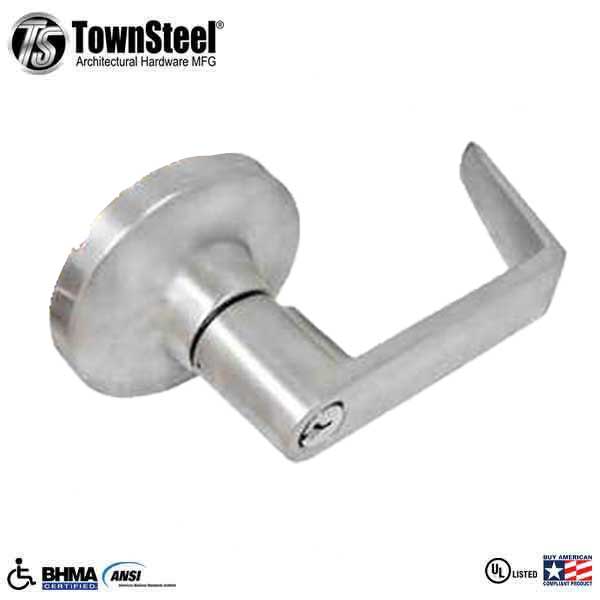

TNS-ED8900LS-08-M-SC-626

The ED8900LQ Sectional Lever Trim is designed to be compatible with the 8900 series Rim, SVR, LBR & 3 Point Push Bars. ED8900LQ is ANSI Certified Grade 1 and UL listed for Panic Hardware.

More Information Below

Specifications

Application	Sectional Lever Trim
Function	Entrance
Lever Style	LS Lever
Handing	Non-Handed
Compatibility	Compatible with 8900 Series Exit Device: Rim, SVR, LBR & 3 Point Push Bars
Dogging	Key Locks or Unlocks Latch Bolt
Mounting	Thru-bolted mounting
Rose Diameter	3-11/32” (84.8mm)
Lever Length	5-1/4” (13mm)
Door Thickness	1-3/4” (45mm)
Cylinder	6-Pin Schlage Keyway
Finish	626 Satin Chrome
Grade	1
Certifications	ANSI/BHMA - A156.3-2008 Grade 1 Certified UL - UL 305 panic hardware listed BAA - Meets requirements of the Buy American Act ADA - Meets guidelines of the Americans with Disabilities Act
Manufacturer Warranty	1-year limited manufacturer warranty

Downloads

• Data Sheet
