TNS-MRX-A-01

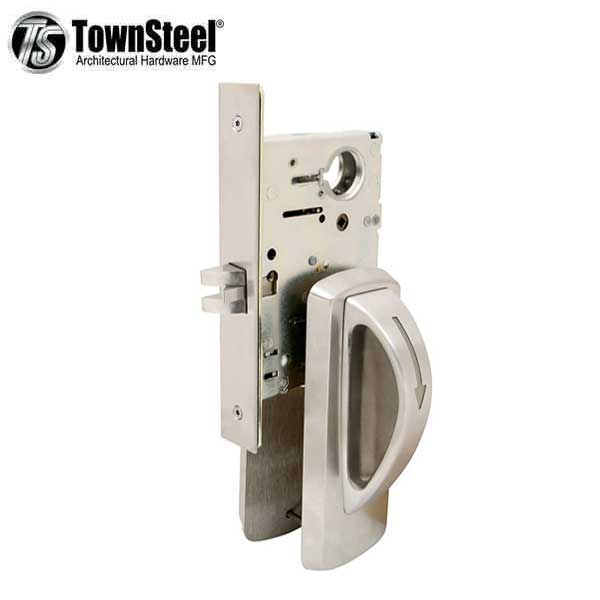

The MRX-A is an ANSI Grade 1 mortise lock with a ligature-resistant arch lever. MRX-A is suitable for behavioral, mental, and psychiatric healthcare facilities housing patients at risk. This product is equipped with a 5-point ligature-resistant stainless steel arch lever and tamper-resistant mounting screws. The MRX-A can be mounted on both a wood and metal door.

Features:

• 5-Point Ligature Resistant Mortise Lock
• Non Keyed
• Passage Function
• Optional Handing
• ANSI/BHMA Grade 1, UL Listed
• Meets requirements of the Buy American Act
• Meets guidelines of the Americans with Disabilities Act



Specifications:

Application	For facilities housing patients in risk
Door Thickness	1-3/4"
Backset	2-3/4″
Lock Body	4"
Function	Passage
Handing	Optional Handing
Latch bolt	Stainless steel, 1/2″ projection
Faceplate	Stainless steel 1-1/4" x 8"
Keying	Non Keyed
Strike	Stainless steel, ASA, 1-1/4″ X4-7/8″
Mounting	Through-bolt, tamper resistant mounting screws, for wood and metal door
Finish	630 Stainless Steel
Cover Plate	Stainless Steel, 7-1/2” x 2-3/4” x 1/2”
Certifications	UL/ULC 10C listed 3-hour rating Meets requirements of the Buy American Act Meets guidelines of the Americans with Disabilities Act
Manufacturer Warranty	10-year manufacturer limited warranty
