The Versatile 4-7/8" Solution
For Cylindrical And Deadlatches

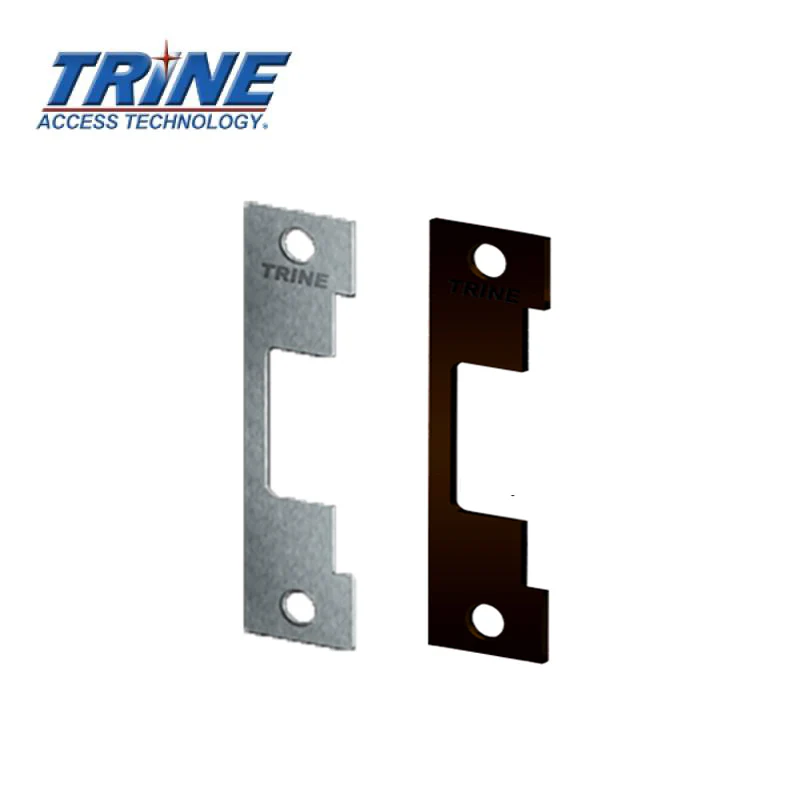

Dual-colored electric strike includes 2 Faceplates, 2 Fascia, 2 Trim Skirts in 32 -Stainless Steel, and 10B Oil Rubbed Bronze for Clear and Dark Colored Aluminum frames for use with cylindrical locks and deadlatches. Made especially for aluminum frames, and for use with wood frames.

4200CC-10B-32D Features:

• The only electric strike to have two different finishes in one box. Allows you to match the two most popular frame finishes -- clear aluminum and dark bronze.

• Competitively priced - at or lower than competition models of the same class.

• Tallest Latch Cavity in its Class - at 2 - 13/16" the 4200 offers almost twice the latch height compared to the competition.

• Poe Friendly electric strike - 0.240 Amps at 12DC and 0.114 Amps at 24DC

• Runs Cool all the time, no need of an external 'pac' to reduce strike temperature under continuous duty.

• Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.

•


Volts	Current	Ohms (Ω)	Duty	Sound	Wire Color
12DC	0.240 A	50 Ω	Intm./Cont.	Silent	Blue/Red
24DC	0.114 A	210 Ω	Intm./Cont.	Silent	Brown/Red
12AC	0.210 A	50 Ω	Intm.	Buzz	Blue/Red
16AC	0.280 A	50 Ω	Intm.	Buzz	Blue/Red
24AC	0.420 A	50 Ω	Intm.	Buzz	Blue/Red

When removing the connector and using the wires direct; Red Wire is Common, Blue Wire accepts 12DC & 12-16 AC, Brown Wire accepts 24DC.
