Trine - 323478LC - Enhanced ANSI Electric Strike Kit - Grade 1
The 323478LC electric strike includes the 234X Faceplate in addition to the current faceplates already included Trine Solution. With the Patented horizontal adjustment feature -- Guaranteed not to move -- and the Smallest electric strike faceplate in the world, this 3000 Series strike is your universal ANSI solution. (478-CCFP is no longer included in the 323478LC-32D)
323478LC Features:- GRADE 1 electric strike
- 500,000 + life cycles
- Includes One (1) 234-26D Faceplate Faceplate, One (1) 234X Faceplate, One (1) 478-32D Faceplate, One (1) 30LC Mechanism. See individual items for details.
- Solid stainless steel latch and locking mechanism
- Please note: The 478-CCFP filler plate is no longer included in the kit.

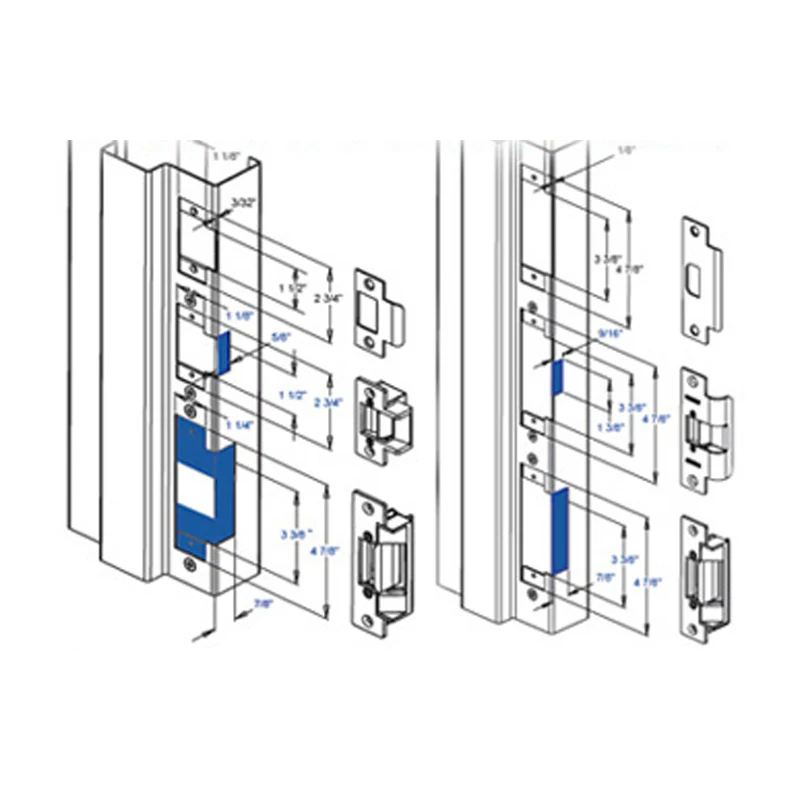

- Top: Standard Door Strike Plate
- Middle: Trines 323478LC Faceplates Require up to 60% less cutting and the 234 requires up to 80% less cutting.
- Bottom: Their strike requires extensive cutting of the frame.
| Voltage | Current/Amps | Ohms (Ω) | Duty | Sound | Wire Color |
|---|---|---|---|---|---|
| 12DC | 0.743/0.298 | 13.0 | Intm./Cont. | Silent | Red |
| 12AC | 0.715/0.277 | 13.0 | Intm./Cont. | Silent | Red |
| 24DC | 0.397/0.170 | 13.0 | Intm./Cont. | Silent | Red |
| 24AC | 0.378/0.173 | 13.0 | Intm./Cont. | Silent | Red |
Downloadable content:
- 323478LC Catalog Page
- 3000 Unit Dimensions
- 234 Dimensions
- 234 Metal Frame Prep
- 234 Wood Frame Prep
- 478 Dimensions
- 478 Metal Frame Prep
- 478 Wood Frame Prep
- 3234/3478 Compare Cutting
- 3000 Series Instructions
