UL Listed Electric Strike Kit w/ 2 Face Plates - Adjustable Fail Safe / Fail Secure - Adjustable 12/24VDC - Grade 1
UL Listed Electric Strike Kit w/ 2 Face Plates - Adjustable Fail Safe / Fail Secure - Adjustable 12/24VDC - Grade 1
DELS-1224FSS
The UL Listed Electric Strike Kit is the electric strike kit for every latchbolt lock. These heavy duty electric strikes are designed for installation in hollow metal or wood for access control of cylindrical and mortise locksets and mortise exit devices. Designed for easy use and easy installation
More Information Below
| Operation | Pair with latch bolt mechanical lock |
| Applications | For aluminum steel or wooden door, brass door |
| Construction | Front plate: Aluminum / Stainless steel Lock body: Zinc alloy Latches: Stainless steel |
| Faceplates |

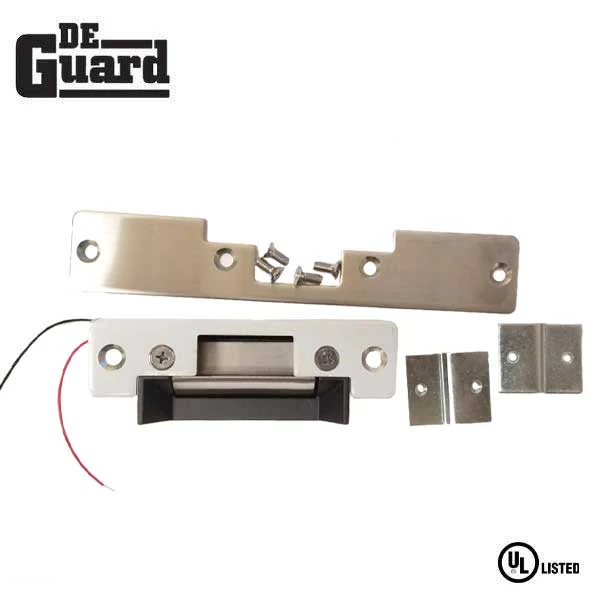

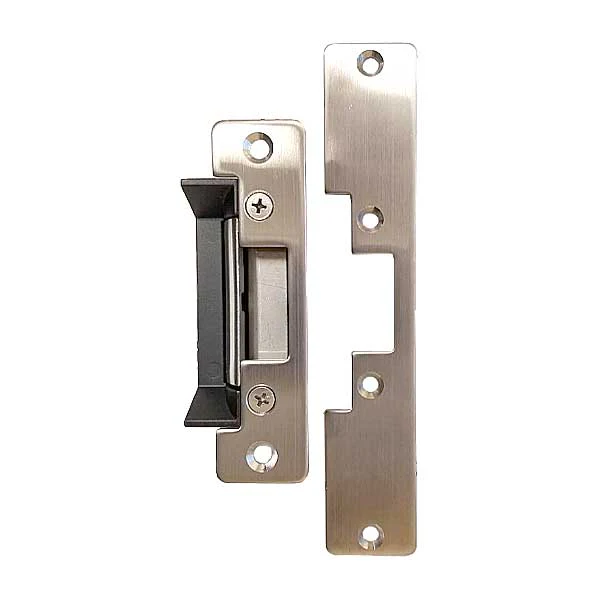

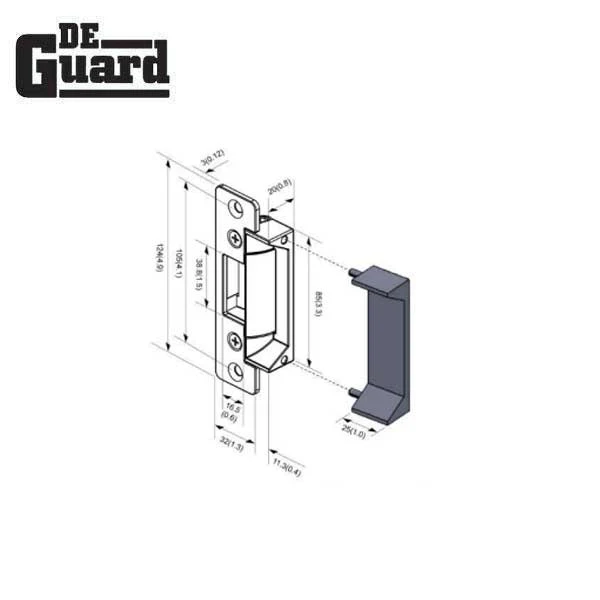

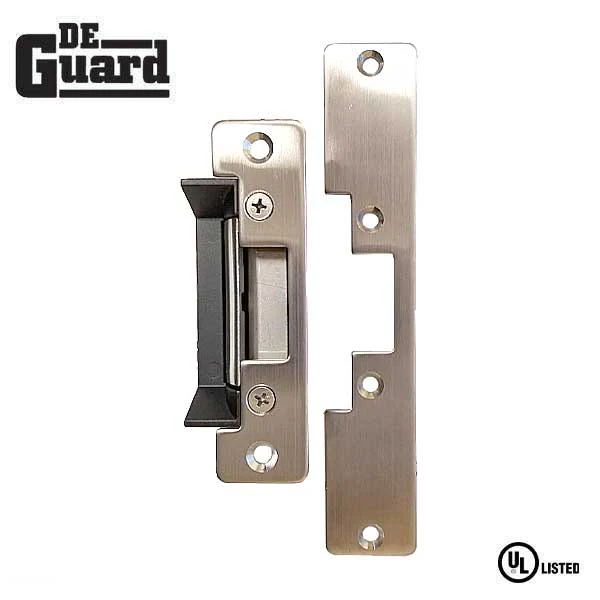

2 Face Plates Included 4-7/8" x 1-1/4" (124mm(L) x 32mm(W)) 7-7/8" x 1-1/4" ( 202mm(L) x 36mm(W)) |
| Holding force: | ~ 2700 Lbs |
| Endurance | 1,000,000 cycles |
| Nominal voltage | DC 12V~DC 24V |
| Standby Current |
270mA~140mA |
| Working current | 0mA |
| Temp. range | -20 C～70 C |

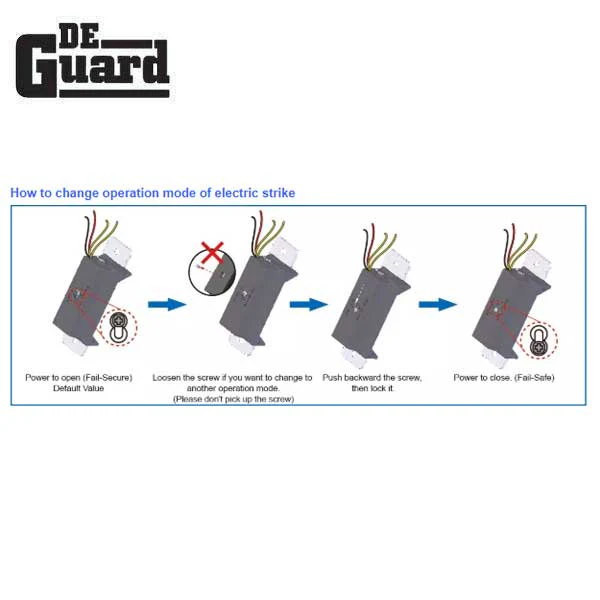

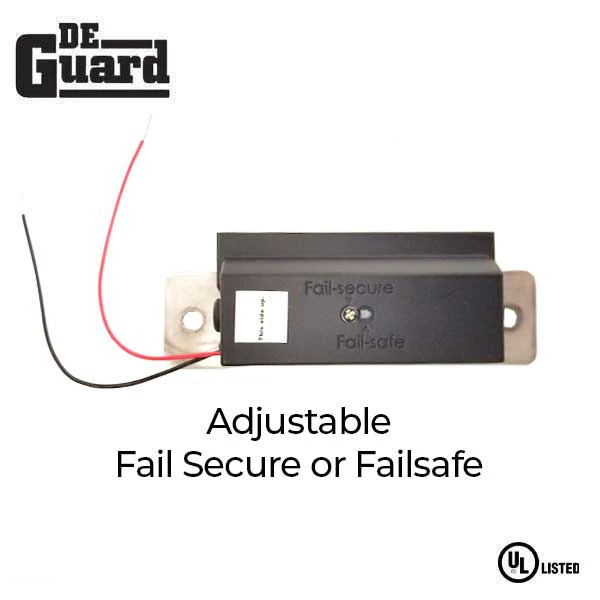

| Fail Safe / Fail Secure | Adjustable Fail Safe / Fail Secure |
| Voltage | Adjustable 12/24VDC |
| Power consumption |
3.24W~3.36W |
| Slot Depth |
15mm |
| Finish | 630 - Satin stainless steel faceplates |
| Certifications | UL Listed - Grade 1 |
| Warranty | Lifetime limited warranty |
