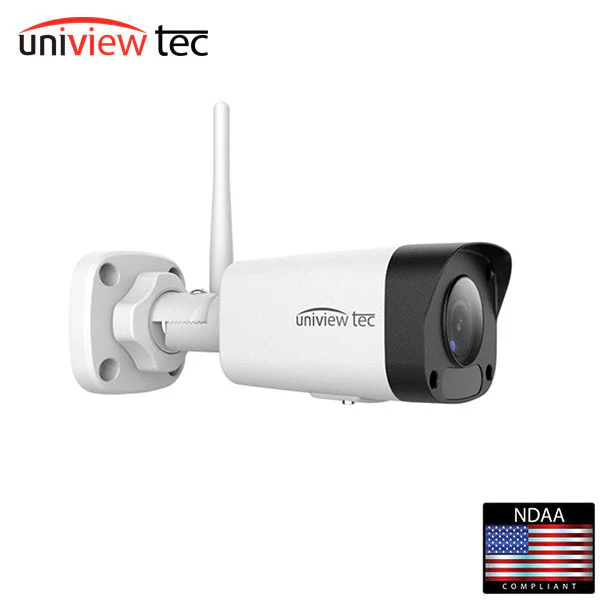

Uniview Tec / UVT / IPBW440 / Bullet Camera / 4MP / 4mm Lens / True Day-Night / WDR / 30m IR
1 / 2
Uniview Tec / UVT / IPBW440 / Bullet Camera / 4MP / 4mm Lens / True Day-Night / WDR / 30m IR
- Exceptional Video Quality with 4MP, 2560 x 1440 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- 4mm Fixed Lens
- Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 98 Feet
- Wireless Video Transmission with Frequency Range of 2.4GHz ~ 2.4835GHz
- TRUE Day/Night and D-WDR functionality for all Lighting Conditions
- Triple Video Streams, Backlight Compensation and 3D DNR (Digital Noise Reduction)
- ONVIF Profile S Compliant & Powerful Video Analytics such as Behavior and Intrusion
- 12VDC Power and IP67 Weather Resistant Housing
- Built-in Micro-SD Card Slot enables local storage up to 256GB
- Optional Mounts Available
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/2.7", progressive scan , 4 megapixel, CMOS |
| Lens | 4.0mm @ F2.0 / 86.5° x 44.1° |
| Angle of View (H x V) | 101.1° x 55.3° |
| Shutter | Auto/Manual, 1/6 ~ 1/100000 s |
| Minimum Illumination | Color: 0.02 Lux (F2.0, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| Smart IR LED Range / Wavelength | Up to 30m (98 ft) IR range |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Maximum Frame Rate / Stream | Main: 4MP (2560 x 1440) @ 15fps; or 2MP (1920 x 1080) @ 15fps Sub: 720P (1280 x 7200) @ 15fps Third Stream: 4CIF (704 × 576) @ 15fps |
| HLC, BLC, 9:16 Corridor, Defog, Flip |
Supported |
| OSD, Privacy Mask, Motion Detection & ROI |
Up to 8 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, G, T), API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Intrusion Detection | Cross Line, Intrusion, Motion & Tampering Detection |
| Local & Network Storage | Micro-SD, up to 256GB; ANR |
| General | |
| Power | 12VDC +/- 25% ; Power consumption: Max 4W |
| Dimensions (L x W x H) & Weight | 161.1 × 62.4 × 62.7mm (6.3 × 2.5 × 2.5in); 0.25kg (0.55lb) |
| Operating Temperature & Humidity | -30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP67, CE, FCC |
Downloads:
$32.55
Original: $93.00
-65%Uniview Tec / UVT / IPBW440 / Bullet Camera / 4MP / 4mm Lens / True Day-Night / WDR / 30m IR—
$93.00
$32.55Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Exceptional Video Quality with 4MP, 2560 x 1440 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- 4mm Fixed Lens
- Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 98 Feet
- Wireless Video Transmission with Frequency Range of 2.4GHz ~ 2.4835GHz
- TRUE Day/Night and D-WDR functionality for all Lighting Conditions
- Triple Video Streams, Backlight Compensation and 3D DNR (Digital Noise Reduction)
- ONVIF Profile S Compliant & Powerful Video Analytics such as Behavior and Intrusion
- 12VDC Power and IP67 Weather Resistant Housing
- Built-in Micro-SD Card Slot enables local storage up to 256GB
- Optional Mounts Available
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/2.7", progressive scan , 4 megapixel, CMOS |
| Lens | 4.0mm @ F2.0 / 86.5° x 44.1° |
| Angle of View (H x V) | 101.1° x 55.3° |
| Shutter | Auto/Manual, 1/6 ~ 1/100000 s |
| Minimum Illumination | Color: 0.02 Lux (F2.0, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| Smart IR LED Range / Wavelength | Up to 30m (98 ft) IR range |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Maximum Frame Rate / Stream | Main: 4MP (2560 x 1440) @ 15fps; or 2MP (1920 x 1080) @ 15fps Sub: 720P (1280 x 7200) @ 15fps Third Stream: 4CIF (704 × 576) @ 15fps |
| HLC, BLC, 9:16 Corridor, Defog, Flip |
Supported |
| OSD, Privacy Mask, Motion Detection & ROI |
Up to 8 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, G, T), API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Intrusion Detection | Cross Line, Intrusion, Motion & Tampering Detection |
| Local & Network Storage | Micro-SD, up to 256GB; ANR |
| General | |
| Power | 12VDC +/- 25% ; Power consumption: Max 4W |
| Dimensions (L x W x H) & Weight | 161.1 × 62.4 × 62.7mm (6.3 × 2.5 × 2.5in); 0.25kg (0.55lb) |
| Operating Temperature & Humidity | -30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP67, CE, FCC |
Downloads:
