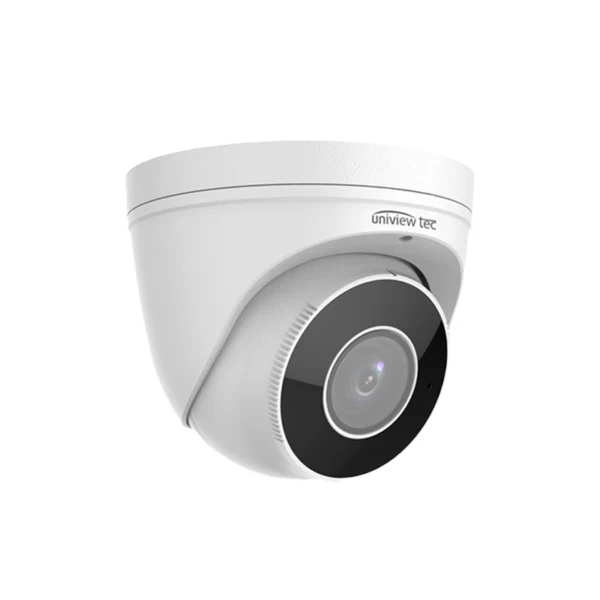

Uniview Tec / UVT / IPT4E212MX / Eyeball Camera / IP / 4MP / 2.8-12mm Varifocal Lens / True Day-Night / WDR / 40m IR
Uniview Tec / UVT / IPT4E212MX / Eyeball Camera / IP / 4MP / 2.8-12mm Varifocal Lens / True Day-Night / WDR / 40m IR
Fully Adheres to National Defense Authorization Act (NDAA) GuidelinesExceptional Video Quality with 4MP, 2688 x 1520 ResolutionSuper-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage RequirementsPowerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 131 Feet2.8 ~ 12mm motorized varifocal, automatic focus lensTRUE Day/Night and WDR functionality for all Lighting ConditionsCorridor Mode, One-way Audio w/ built-in microphone, Backlight Compensation and 3D DNR (Digital Noise Reduction)Dual Video Streams; ONVIF Profile S CompliantIntrusion Detection AnalyticsPoE & 12VDC Power Options and Optional Wall and Pendant Mounts AvailableBuilt-in Micro-SD Card Slot enables local storage up to 256GB3-Way Axis, IP67 Weather Resistant and IK10 Vandal Resistant Rated Vandal HousingSupported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/3", progressive scan , 4 megapixel, CMOS |
| Lens | 2.8~12mm,varifocal automatic focusing and motorized zoom lens |
| Angle of View (H x V) | 102.79°~ 30.86°x 54.50°~ 17.49° (wide ~ tele) |
| Shutter | Auto/Manual, 1/6~1/100000 s |
| Minimum Illumination | Color: 0.003Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| IR LED Range | Up to 40m (131ft) IR range |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate / Stream | Main: 4MP (2688x 1520)@ 25fps; or (2560 x 1440) @25fps; or 3MP (2304 x 1296) @ 30fps Sub: 720P(1280 x 720) @ 30fps |
| HLC, BLC, 9:16 Corridor, Defog, Flip | Supported |
| OSD, Privacy, Motion & ROI | Up to 8 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, 802.1x, SNMP |
| Compatible Integration | ONVIF (Profiles S, G, T), API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Intrusion Detection Analytics | Cross Line, Intrusion, Motion & Tampering Detection |
| Local Storage | Micro-SD, up to 256GB |
| Network Storage | Automatic Network Replenishment (ANR) |
| General | |
| Power | 12VDC+/-25%, PoE (IEEE802.3 af); Max 8W |
| Dimensions (Ø x H) & Weight | ?129x 110mm (Ø5.1x 4.3”); 0.67kg (1.48lb) |
| Audio I/O & Compression | 1 / 0, with built-in microphone; G711 |
| Operating Temperature & Humidity |
-30°C ~ +60°C (-22°F ~ 140°F);Humidity:10%~ 95% RH(non-condensing) |
| Conformity Certifications | IP67,CE, FCC |
Downloads
- Spec Sheet
- Manual
