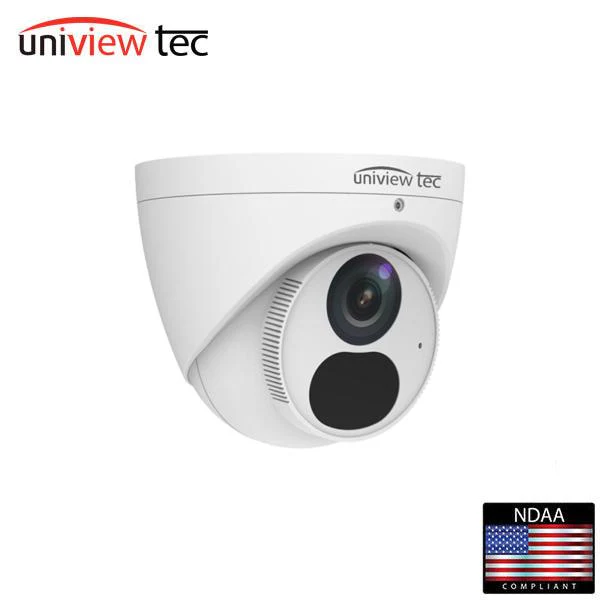

Uniview Tec / UVT / IPT4KE28X / Eyeball Camera / IP / 8MP / 2.8mm Fixed Lens / True Day-Night / WDR / 30m IR
Uniview Tec / UVT / IPT4KE28X / Eyeball Camera / IP / 8MP / 2.8mm Fixed Lens / True Day-Night / WDR / 30m IR
Fully Adheres to National Defense Authorization Act (NDAA) GuidelinesExceptional Video Quality with 4K (8MP), 3840 x 2160 ResolutionSuper-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage RequirementsPowerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 98 Feet2.8 fixed, wide-angle lensTRUE Day/Night and WDR functionality for all Lighting ConditionsBacklight Compensation, Corridor Mode, Defog and 3D DNR (Digital Noise Reduction)Dual Video Streams, ONVIF Profile S CompliantOne-way Audio with Built-in MicrophoneIntrusion Detection AnalyticsIP67 Weather Resistant Housing and PoE & 12VDC Power Options3-Way Axis and Optional Wall, Junction Box and Pole Mounts AvailableSupported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/2.7", progressive scan , 8 megapixel, CMOS |
| Lens | 2.8mm @ F1.6 |
| Angle of View (H x V) | 112.9° x 59.1° |
| Shutter | Auto/Manual, 1/6 ~ 1/100000 s |
| Minimum Illumination | Color: 0.005 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| IR LED Range / Wavelength | Up to 30m (98 ft) IR range; 850nm |
| WDR | 120dB |
| Video Compression & Bit Rate | Ultra 265, H.265, H.264, MJPEG; 128 Kbps ~ 16 Mbps |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate/ Stream | Main Stream: 8MP (3840*2160) @ Max. 20fps; Sub: 1080P (1920*1080) @ Max. 30fps |
| HLC, BLC, Defog, Flip, 9:16 Corridor, Dewarping |
Supported |
| OSD, Privacy Mask, Motion Detection & ROI |
Up to 8 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP |
| Compatible Integration | ONVIF (Profile S, T, G), API |
| Local & Network Storage | Micro-SD, up to 256GB; ANR |
| Network | RJ45, 10M/100M Base-T X Ethernet |
| Intrusion Detection Analytics | Cross Line, Intrusion, Motion & Tampering Detection |
| General | |
| Power | 12 VDC, PoE (IEEE802.3 af); Power consumption: Max 4.5W |
| Audio I/O & Compression | 1/0, w/ built-in MIC; G711 |
| Dimensions (Ø x H) & Weight | ?118 x 95mm (Ø4.6 x 3.8”); 0.36kg (0.79lb) |
| 3-Axis Adjustment Range | Pan: 0°~360° Tilt: 0° ~ 80° Rotate: 0°~360° |
| Operating Temperature & Humidity |
-30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP67, CE, FCC |
Downloads
- Spec Sheet
- Manual
Original: $179.00
-65%$179.00
$62.65Product Information
