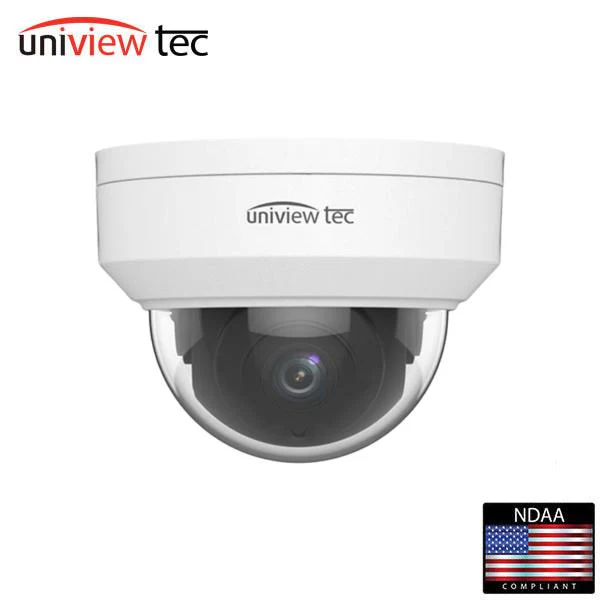

Uniview Tec / UVT / IPV4E40X / Dome Camera / IP / 4MP / 4mm Fixed Lens / True Day-Night / WDR / 30m IR
Uniview Tec / UVT / IPV4E40X / Dome Camera / IP / 4MP / 4mm Fixed Lens / True Day-Night / WDR / 30m IR
Fully Adheres to National Defense Authorization Act (NDAA) GuidelinesExceptional Video Quality with 4MP, 2688x 1520 ResolutionSuper-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage RequirementsPowerful, Smart IR LED Lights for 0Lux Night Time Operation up to 98 Feet4mm fixed lensTRUE Day/Night and WDR functionality for all Lighting ConditionsCorridor Mode, Defog, Backlight Compensation and 3D DNR (Digital Noise Reduction)ONVIF Profile S CompliantSmart Behavior Video Analytics such as Intrusion, Tampering, Audio and Human Body DetectionPoE & 12VDC Power OptionsBuilt-in Micro-SD Card Slot enables local storage up to 256GBIP67 Weather Resistant and IK10 Vandal Resistant Rated Vandal Housing3-Axis Adjustable, with Optional Wall and Pendant Mounts AvailableSupported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/3", progressive scan , 4megapixel, CMOS |
| Lens | 4.0mm@F1.6 |
| Angle of View (H x V) | 83.7°x 44.9° |
| Shutter | Auto/Manual, 1~1/100000 s |
| Minimum Illumination | Color: 0.003Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| IR LED Range | Upto 30m (98 ft) IR range |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate / Stream | Main: 4MP (2688x 1520)@ 25fps Sub: 720P(1280x 720)@ 30fps |
| HLC, BLC, Defog, Flip, 9:16 Corridor |
Supported |
| OSD, Privacy Mask, Motion Detection & ROI | Up to 8 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP |
| Compatible Integration | ONVIF(Profile S, G, T), API |
| Network | RJ45,10M/100MBase-TXEthernet |
| Behavior Video Analytics | Intrusion, Human Body Detection, Motion detection, Tampering alarm |
| Local and Network Storage | Micro-SD, up to 256GB / Automatic Network Replenishment (ANR) |
| General | |
| Power | 12VDC+/-25%, PoE (IEEE802.3 af); Power consumption: Max 5.5W |
| Dimensions (Ø x H) & Weight | ?109x 81mm (Ø4.3” x 3.2”); 0.35kg (0.77lb) |
| Operating Temperature & Humidity |
-30°C ~ +60°C (-22°F ~ 140°F);Humidity:10% ~95% RH(non-condensing) |
| Conformity Certifications | IP67, IK10; CE, FCC |
Downloads
- Spec Sheet
- Manual
Original: $129.00
-65%$129.00
$45.15Product Information
