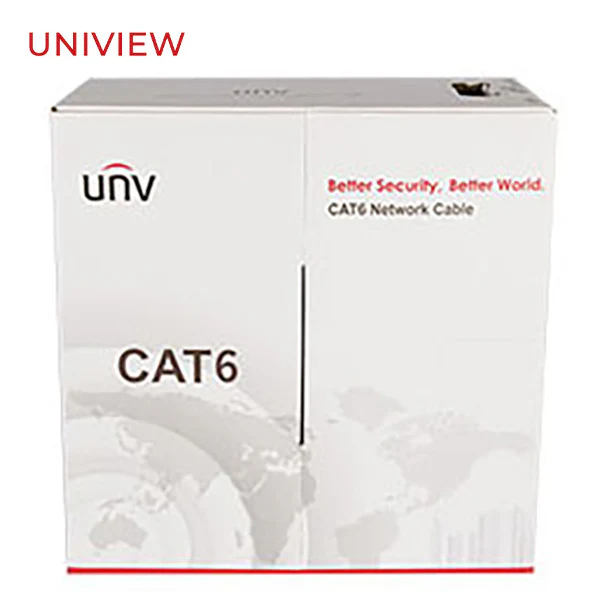

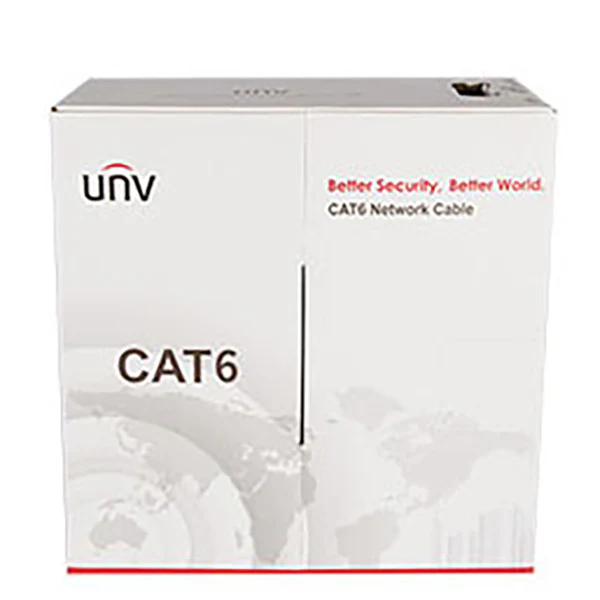

Uniview / UNV / CAT6 / UTP / 305M / 99.99% OFC / 0.5mm / UL Certificate / UNV-CAB-LC3100A

Product image 1
1 / 4

Uniview / UNV / CAT6 / UTP / 305M / 99.99% OFC / 0.5mm / UL Certificate / UNV-CAB-LC3100A


  • CAT6
  • UTP
  • 305M
  • 99.99% OFC
  • 0.5mm
  • UL Certificate
  • Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
  • Call 1-800-878-6604 for Dealer Prices!



    Technical Specification

    Product specification HSYV-6 4×2×0.57
    Test Standard YD/T1019-2013
    Conductor
    Material OFC(Oxygen free copper)
    AWG 23
    Nom.O.D.(mm) 0.57±0.005 mm
    DC resistance ≤95 Ω/km
    Insulation
    Material HDPE
    Thickness 0.2±0.02 mm
    Diameter 1.02±0.05 mm
    Color Blue/White- Blue
    Color Green/White-Green
    Color Orange /White-Orange
    Color Brown/White-Brown
    Pitch
    Offset pitch ≤20 mm
    Cable pitch ≤120 mm
    Sheath
    Material PVC(complies RoHS/REAC)
    External O.D. 6.2±0.3 mm
    Color Blue(RAL5015)
    Tensile strength >13.5 Mpa
    Thickness 0.6±0.05 mm
    Surface Printing
    Letter height 3.0±0.3 mm
    Color Black
    Print error & Space 1±0.005 m
    Case number Yes
    Packing
    Packing Carton
    Once packing dimension 420mm*205mm*420mm
    Twice packing dimension 450mm*440mm*445mm
    Twice packing quantity 2 cases
    Packing length 305±1 m
    Rip-cord Yes
    Ambient temperature -20℃～60℃

    Downloads
    Data Sheet

    $47.23

    Original: $134.95

    -65%
    Uniview / UNV / CAT6 / UTP / 305M / 99.99% OFC / 0.5mm / UL Certificate / UNV-CAB-LC3100A—

    $134.95

    $47.23

    Product Information

    Shipping & Returns

    Description


    • CAT6
    • UTP
    • 305M
    • 99.99% OFC
    • 0.5mm
    • UL Certificate
    • Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
    • Call 1-800-878-6604 for Dealer Prices!



      Technical Specification

      Product specification HSYV-6 4×2×0.57
      Test Standard YD/T1019-2013
      Conductor
      Material OFC(Oxygen free copper)
      AWG 23
      Nom.O.D.(mm) 0.57±0.005 mm
      DC resistance ≤95 Ω/km
      Insulation
      Material HDPE
      Thickness 0.2±0.02 mm
      Diameter 1.02±0.05 mm
      Color Blue/White- Blue
      Color Green/White-Green
      Color Orange /White-Orange
      Color Brown/White-Brown
      Pitch
      Offset pitch ≤20 mm
      Cable pitch ≤120 mm
      Sheath
      Material PVC(complies RoHS/REAC)
      External O.D. 6.2±0.3 mm
      Color Blue(RAL5015)
      Tensile strength >13.5 Mpa
      Thickness 0.6±0.05 mm
      Surface Printing
      Letter height 3.0±0.3 mm
      Color Black
      Print error & Space 1±0.005 m
      Case number Yes
      Packing
      Packing Carton
      Once packing dimension 420mm*205mm*420mm
      Twice packing dimension 450mm*440mm*445mm
      Twice packing quantity 2 cases
      Packing length 305±1 m
      Rip-cord Yes
      Ambient temperature -20℃～60℃

      Downloads
      Data Sheet
