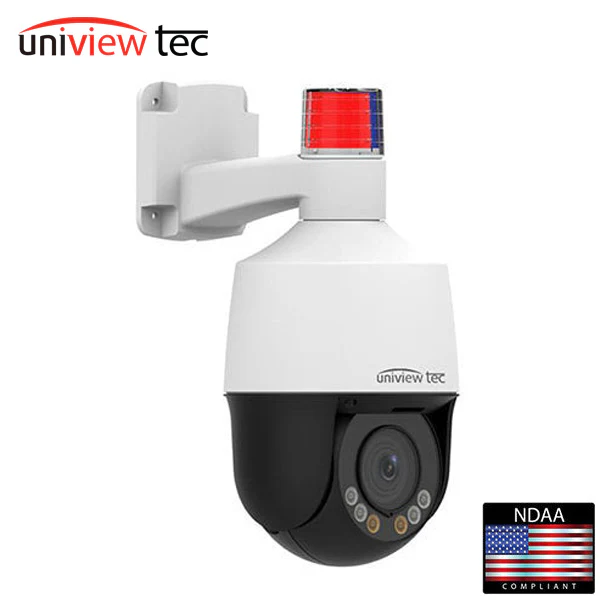

Uniview Tec / UVT / IPCSD54X / Mini Dome Camera / 5MP / 2.8mm - 12mm Optical Lens / Active Deterrence / 50m IR
1 / 2
Uniview Tec / UVT / IPCSD54X / Mini Dome Camera / 5MP / 2.8mm - 12mm Optical Lens / Active Deterrence / 50m IR
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Exceptional Video Quality with 5MP 2880 x 1620 Resolution, with Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage
- LightHunter Technology for ultra-high image quality in low light applications and Smart IR LED Lights for 0 Lux Night Time Operation up to 164 Feet
- 2.8 ~ 12mm, 4x Optical motorized zoom and automatic focus lens
- TRUE Day/Night and Wide Dynamic Range Functionality for all Lighting Conditions
- Two-way Audio, Backlight Compensation and 3D DNR (Digital Noise Reduction)
- Pan / Tilt Speed up to 50°/sec with up to 256 Preset Positions
- Triple Video Streams; ONVIF Profile S Compliant
- Intelligent perimeter protection with Active Deterrence with Strobe Light and Audio Alarm
- 12VDC / PoE Power Options and Built-in Micro-SD Card Slot enables up to 256GB storage
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/2.7", progressive scan , 5 megapixel CMOS |
| Lens | 2.8 ~ 12mm, automatic focusing and motorized zoom lens |
| Angle of View (H x V) | 30.6° ~ 104.1° x 17.4° ~ 54.9°(wide ~ tele) |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Minimum Illumination | Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| IR LED Range / Wavelength | Up to 50m (164ft) IR range / 850nm |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Maximum Frame Rate/ Stream | Main Stream: 5MP (2880 × 1620) @ 30fps Sub Stream: 720P (1280 x 720) @ 30fps Third Stream: D1 (720 × 576) @ 30fps |
| HLC, BLC, Flip | Supported |
| OSD, Privacy Mask, Motion Detection & RO | Up to 8 areas |
| Pan and Tilt Speed; Presets | 0°~345° Pan, 50°/s max speed; -10° ~ 110° Tilt, 40°/s max speed; 256 presets |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL |
| Compatible Integration | ONVIF Profile S, API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Intelligent Perimeter Protection | Cross Line, Intrusion, Enter Area, Leave Area detection; Motion detection |
| Local & Network Storage | Micro-SD, up to 256GB; Automatic Network Replenishment (ANR) |
| General | |
| Power | 12VDC +/- 25%, PoE (IEEE802.3 af); Max 18W |
| Dimensions (Ø x H) & Weight | Φ133 x 269.4mm (Φ5.2 x 10.6”); 1.13kg (2.49lb) |
| Audio I/O & Compression | 1 / 1 w/ built-in Mic & Speaker; G.711U and G.711A |
| Operating Temperature & Humidity |
-20°C ~ +60°C (-4°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP66, CE, FCC |
Downloads:
$94.15
Original: $269.00
-65%Uniview Tec / UVT / IPCSD54X / Mini Dome Camera / 5MP / 2.8mm - 12mm Optical Lens / Active Deterrence / 50m IR—
$269.00
$94.15Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Exceptional Video Quality with 5MP 2880 x 1620 Resolution, with Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage
- LightHunter Technology for ultra-high image quality in low light applications and Smart IR LED Lights for 0 Lux Night Time Operation up to 164 Feet
- 2.8 ~ 12mm, 4x Optical motorized zoom and automatic focus lens
- TRUE Day/Night and Wide Dynamic Range Functionality for all Lighting Conditions
- Two-way Audio, Backlight Compensation and 3D DNR (Digital Noise Reduction)
- Pan / Tilt Speed up to 50°/sec with up to 256 Preset Positions
- Triple Video Streams; ONVIF Profile S Compliant
- Intelligent perimeter protection with Active Deterrence with Strobe Light and Audio Alarm
- 12VDC / PoE Power Options and Built-in Micro-SD Card Slot enables up to 256GB storage
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/2.7", progressive scan , 5 megapixel CMOS |
| Lens | 2.8 ~ 12mm, automatic focusing and motorized zoom lens |
| Angle of View (H x V) | 30.6° ~ 104.1° x 17.4° ~ 54.9°(wide ~ tele) |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Minimum Illumination | Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| IR LED Range / Wavelength | Up to 50m (164ft) IR range / 850nm |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Maximum Frame Rate/ Stream | Main Stream: 5MP (2880 × 1620) @ 30fps Sub Stream: 720P (1280 x 720) @ 30fps Third Stream: D1 (720 × 576) @ 30fps |
| HLC, BLC, Flip | Supported |
| OSD, Privacy Mask, Motion Detection & RO | Up to 8 areas |
| Pan and Tilt Speed; Presets | 0°~345° Pan, 50°/s max speed; -10° ~ 110° Tilt, 40°/s max speed; 256 presets |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL |
| Compatible Integration | ONVIF Profile S, API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Intelligent Perimeter Protection | Cross Line, Intrusion, Enter Area, Leave Area detection; Motion detection |
| Local & Network Storage | Micro-SD, up to 256GB; Automatic Network Replenishment (ANR) |
| General | |
| Power | 12VDC +/- 25%, PoE (IEEE802.3 af); Max 18W |
| Dimensions (Ø x H) & Weight | Φ133 x 269.4mm (Φ5.2 x 10.6”); 1.13kg (2.49lb) |
| Audio I/O & Compression | 1 / 1 w/ built-in Mic & Speaker; G.711U and G.711A |
| Operating Temperature & Humidity |
-20°C ~ +60°C (-4°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP66, CE, FCC |
