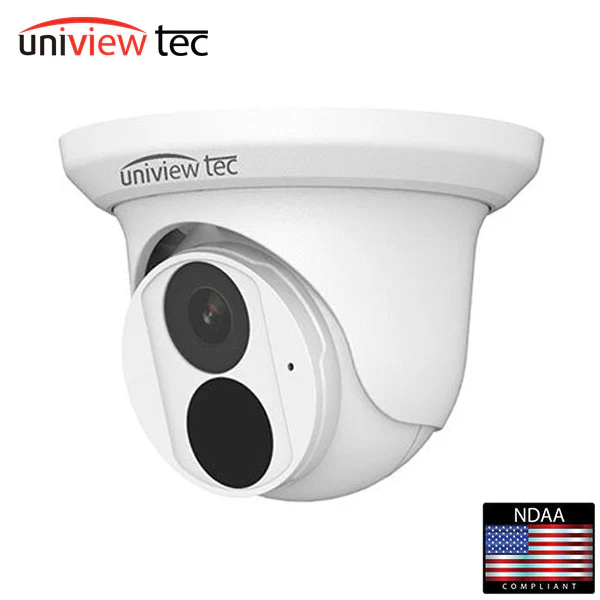

Uniview Tec / UVT / IPT428AIX / Turret Dome Camera / 4MP / 2.8mm Fixed Lens / True Day-Night / WDR / IR Lighthunter Turret Dome
1 / 2
Uniview Tec / UVT / IPT428AIX / Turret Dome Camera / 4MP / 2.8mm Fixed Lens / True Day-Night / WDR / IR Lighthunter Turret Dome
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- LightHunter illumination technology ensures ultra-high color image up to 0.003 Lux (F1.6)
- Exceptional Video Quality with 4MP, 2688 x 1520 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 98 Feet
- 2.8 fixed lens, Triple Video Streams and ONVIF Profile S Compliant, PoE & 12VDC Power Options
- TRUE Day/Night and WDR functionality for all Lighting Conditions
- One way Audio w/ built in microphone, Corridor View, Backlight Compensation and 3D DNR (Digital Noise Reduction)
- Intelligent, smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
- IP67 Weather Resistant Housing, with Optional Wall and Pendant Mounts Available
- Built-in Micro-SD Card Slot enables local storage up to 256GB
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/3", progressive scan , 4 megapixel, CMOS |
| Lens | 2.8mm @ F1.6 |
| Angle of View (H x V) | 101.1° x 55.3° |
| Shutter | Auto/Manual, 1/6 ~ 1/100000 s |
| Minimum Illumination | Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| IR LED Range & Wavelength | Up to 30m (98 ft) IR range; 850nm |
| WDR & Defog | 120dB; Digital Defog |
| Video Compression & Bit Rate | Ultra 265, H.265, H.264, MJPEG; 128 Kbps ~ 16 Mbps |
| H.264 code profile | Baseline profile, Main Profile |
| Maximum Frame Rate / Stream | Main: 4MP (2688 x 1520)@ 30fps Sub: 720p (1280 x 720) @ 30fps Third Stream: D1 (704 × 576) @ 30fps |
| HLC, BLC, 9:16 Corridor, Flip | Supported |
| OSD, Privacy Mask, Motion Detection & ROI |
Up to 8 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Network | RJ45, 10M/100M Base-T X Ethernet |
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter Area, Leave Area detection; Motion detection |
| Local & Network Storage | Micro SD, up to 256 GB; ANR |
| General | |
| Power | 12 VDC +/- 25%, PoE (IEEE802.3 af); Power consumption: Max 4W |
| Audio I/O & Compression | 1 / 0, w/ built-in Microphone; G711 |
| Dimensions (Ø x H) & Weight | Φ110.5 x 94.1mm (Ø4.4 x 3.7”); 0.42kg (0.93lb) |
| Operating Temperature & Humidity |
-30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP67, CE, FCC |
Downloads:
$52.15
Original: $149.00
-65%Uniview Tec / UVT / IPT428AIX / Turret Dome Camera / 4MP / 2.8mm Fixed Lens / True Day-Night / WDR / IR Lighthunter Turret Dome—
$149.00
$52.15Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- LightHunter illumination technology ensures ultra-high color image up to 0.003 Lux (F1.6)
- Exceptional Video Quality with 4MP, 2688 x 1520 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 98 Feet
- 2.8 fixed lens, Triple Video Streams and ONVIF Profile S Compliant, PoE & 12VDC Power Options
- TRUE Day/Night and WDR functionality for all Lighting Conditions
- One way Audio w/ built in microphone, Corridor View, Backlight Compensation and 3D DNR (Digital Noise Reduction)
- Intelligent, smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
- IP67 Weather Resistant Housing, with Optional Wall and Pendant Mounts Available
- Built-in Micro-SD Card Slot enables local storage up to 256GB
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/3", progressive scan , 4 megapixel, CMOS |
| Lens | 2.8mm @ F1.6 |
| Angle of View (H x V) | 101.1° x 55.3° |
| Shutter | Auto/Manual, 1/6 ~ 1/100000 s |
| Minimum Illumination | Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| IR LED Range & Wavelength | Up to 30m (98 ft) IR range; 850nm |
| WDR & Defog | 120dB; Digital Defog |
| Video Compression & Bit Rate | Ultra 265, H.265, H.264, MJPEG; 128 Kbps ~ 16 Mbps |
| H.264 code profile | Baseline profile, Main Profile |
| Maximum Frame Rate / Stream | Main: 4MP (2688 x 1520)@ 30fps Sub: 720p (1280 x 720) @ 30fps Third Stream: D1 (704 × 576) @ 30fps |
| HLC, BLC, 9:16 Corridor, Flip | Supported |
| OSD, Privacy Mask, Motion Detection & ROI |
Up to 8 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Network | RJ45, 10M/100M Base-T X Ethernet |
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter Area, Leave Area detection; Motion detection |
| Local & Network Storage | Micro SD, up to 256 GB; ANR |
| General | |
| Power | 12 VDC +/- 25%, PoE (IEEE802.3 af); Power consumption: Max 4W |
| Audio I/O & Compression | 1 / 0, w/ built-in Microphone; G711 |
| Dimensions (Ø x H) & Weight | Φ110.5 x 94.1mm (Ø4.4 x 3.7”); 0.42kg (0.93lb) |
| Operating Temperature & Humidity |
-30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP67, CE, FCC |
