Von Duprin - 9827L - Surface Mounted Vertical Rod Exit Device - 07 Lever Night Latch - Satin Nickel - Right Hand - 3 Foot

Product image 1
1 / 4

Von Duprin - 9827L - Surface Mounted Vertical Rod Exit Device - 07 Lever Night Latch - Satin Nickel - Right Hand - 3 Foot

9827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case. The surface vertical rod device is non-handed.

More Information Below


Specifications

Trim 996L-NL Night Latch
Handing Right Hand Reverse
Device functions Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device
Device length 3 feet
Center case dimensions 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)
Mechanism case dimensions 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
Projection push bar Pushbar neutral – 3 13⁄16" (97mm)
Pushbar depressed – 3 1⁄16" (78mm)
Latch bolt Deadlocking anti-friction top and bottom bolt, 5⁄8" (16mm) throw
Fasteners Includes screw pack for 1 3⁄4" (44mm) to 2 1⁄4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch.
Dogging feature Hex key dogging

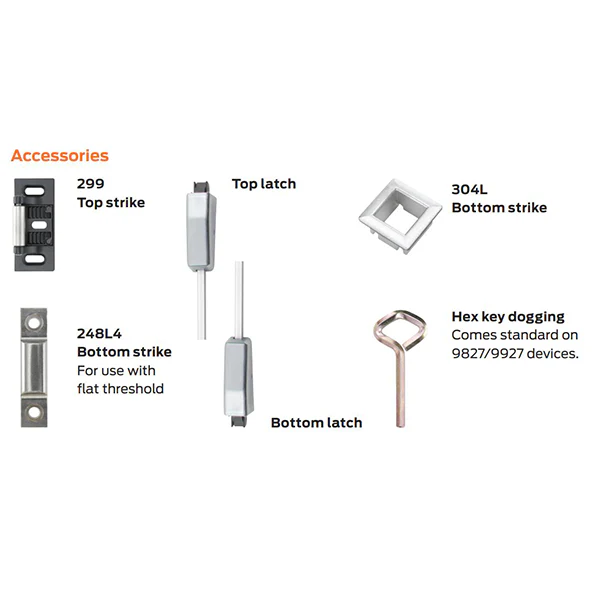

Strikes Top – 299 – Dull black
Bottom – 248L4 and 304L – Unfinished
Fire Rated Not fire rated
Certifications ANSI/BHMA A156.3 2014, Grade 1
