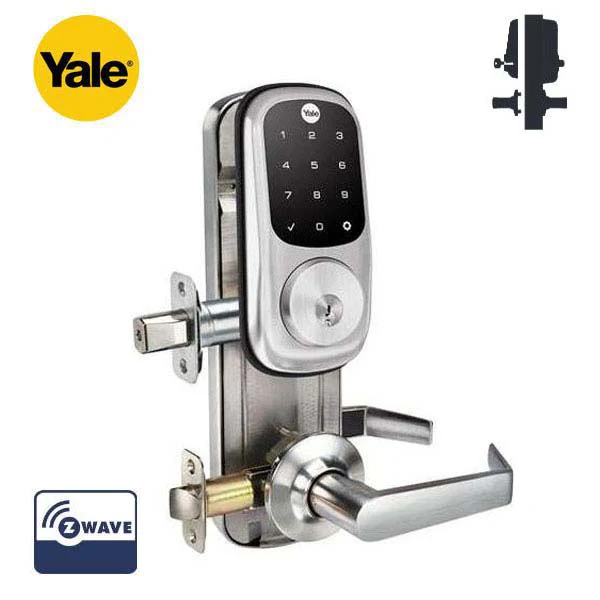

Yale - YRC226 - Assure Interconnected Deadbolt - Z-Wave - Keyed Touchscreen - Keyed Different - Augusta Lever - Satin Nickel - Fire Rated - Grade 2
Yale - YRC226 - Assure Interconnected Deadbolt - Z-Wave - Keyed Touchscreen - Keyed Different - Augusta Lever - Satin Nickel - Fire Rated - Grade 2
Assure Lock Interconnected combines electronic deadbolts with the convenience of a passage lever for panic proof egress. From the inside, both the latchbolt and the deadbolt are retracted simultaneously in a single motion for a quick and easy exit.
Features
- Z-Wave Plus
- Single point lock.
- Latchbolt is operated by either lever at all times.
- Deadbolt activated by touchscreen or key on outside or by thumbturn on inside.
- Interior lever retracts latch and deadbolt simultaneously.
Specifications
| Function | Interconnected Deadbolt, Z-Wave Plus |
| Door Specs | 4" Center to Center Borehole |
| Door Thickness | 1-3/8" (35mm) to 1-3/4" (44mm) |
| Backset | 2-3/8" (60mm) or 2-3/4" (70mm) |
| Strike | Lever: 2-1/4" (57mm) Full Lip, Deadbolt Strike: 1" x 2-1/4" |
| Latch Faceplate | 1" (25mm) W x 2-1/4" (57mm) |
| Cylinder |
KW - 1 Compatible standard |
| Keying |
KD - Keyed Different |
| Lever | AU - Augusta Lever |
| Finish | 619 - Satin Nickel |
| Fire Rated | 20 minute fire rated when installed with optional fire kit |
| Certifications | ANSI/BHMA A156.12 Grade 2, UL/cUL Listed |
Download
Original: $543.88
-65%$543.88
$190.36Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Assure Lock Interconnected combines electronic deadbolts with the convenience of a passage lever for panic proof egress. From the inside, both the latchbolt and the deadbolt are retracted simultaneously in a single motion for a quick and easy exit.
Features
- Z-Wave Plus
- Single point lock.
- Latchbolt is operated by either lever at all times.
- Deadbolt activated by touchscreen or key on outside or by thumbturn on inside.
- Interior lever retracts latch and deadbolt simultaneously.
Specifications
| Function | Interconnected Deadbolt, Z-Wave Plus |
| Door Specs | 4" Center to Center Borehole |
| Door Thickness | 1-3/8" (35mm) to 1-3/4" (44mm) |
| Backset | 2-3/8" (60mm) or 2-3/4" (70mm) |
| Strike | Lever: 2-1/4" (57mm) Full Lip, Deadbolt Strike: 1" x 2-1/4" |
| Latch Faceplate | 1" (25mm) W x 2-1/4" (57mm) |
| Cylinder |
KW - 1 Compatible standard |
| Keying |
KD - Keyed Different |
| Lever | AU - Augusta Lever |
| Finish | 619 - Satin Nickel |
| Fire Rated | 20 minute fire rated when installed with optional fire kit |
| Certifications | ANSI/BHMA A156.12 Grade 2, UL/cUL Listed |
Download
