Camden - CX-ED1079 - Universal Low Profile Electric Strike - Fail Safe / Secure - Non-Handed - 12/24V AC/DC - Grade 1
Camden - CX-ED1079 - Universal Low Profile Electric Strike - Fail Safe / Secure - Non-Handed - 12/24V AC/DC - Grade 1

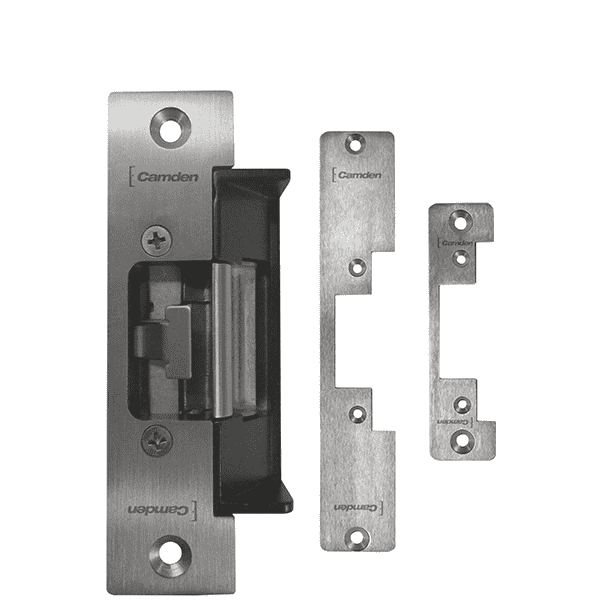

CX-ED1079 (low profile, for 5/8” latch projection) 'Universal' Grade 1 ANSI Strikes offer 'Universal' performance with selectable 12/24V AC/DC and fail safe/fail secure operation, and have horizontal faceplate/body adjustment. Comes with 3 stainless steel faceplates (CX-ESP1B, CX-ESP3B & CX-ESP4B).
- Centerline latch entry for cylindrical and mortise locksets.
- CX-ED1079, Shallow Depth 1/2" to 5/8" latch projection (throw)
- Selectable 12/24V AC/DC
- Selectable fail safe/fail secure operation
- Horizontal adjustability of strike faceplate/body
- 3 stainless steel faceplates included: ANSI square, hollow metal, and wood door frame
- Continuous duty operation
- Non-handed
- 5 year warranty
Specifications
| Voltage: | 12/24V AC/DC |
| Current Draw: | 260 mA @ 12 VDC 150 mA @ 24 VDC |
| Static Strength: | 1,500 Lbs. |
| Dynamic Strength: | 70 Ft-Lbs. |
| Endurance: | 1,000,000 cycles (Factory Tested) 250,000 cycles (UL Verified) |
| Mode: | Selectable - Fail Safe; Fail Secure |
| Operation: | AC - Buzz DC- Silent |
| Duty: | Continuous |
| Latch Monitor: | No |
| Dimensions: |
CX-ED1079: 3 3/8"H x 1 3/4"W x 1 7/32"D (86mm x 44mm x 31mm) |
Downloads
Cross Reference Guide
Specifications Sheet
Installation Guide
Manual
Original: $132.30
-65%$132.30
$46.30Product Information
