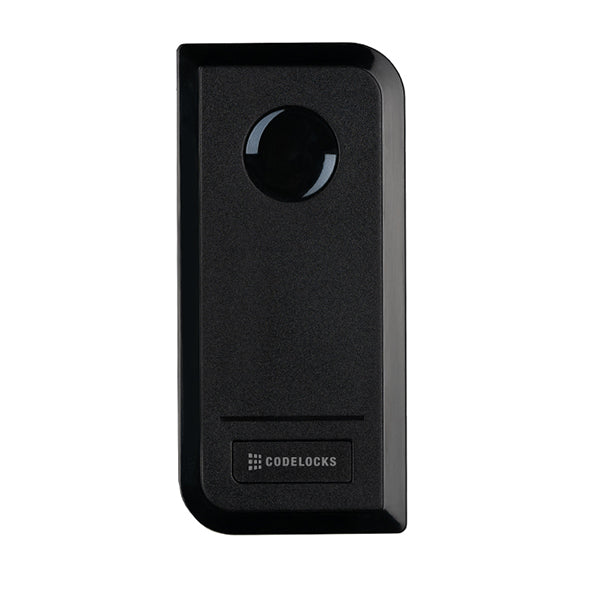

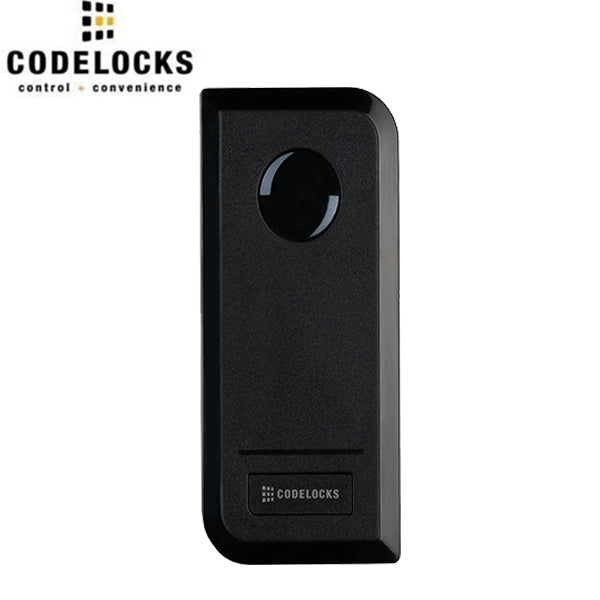

CodeLocks - AL03-RM - A3 Door Controllers - RFID Standalone Door Controller - Black

The A3 RFID MIFARE compatible door controller provides a compact, affordable proximity access control system allowing flexible entry for up to 1000 users.

Many smaller business buildings are still secured by traditional lock and key, meaning doors can be left unlocked all day leaving them open to possibilities of unauthorized persons gaining access, as well as keys going missing. The A3 RFID door controller offers you a keyless solution as a standalone product; an affordable access control system that does not require complex software purchases, external programmers or licensing costs.

Features:

  • 13.56MHz MIFARE compatible (ISO 14443 Type A)
  • Configurable penalty time
  • Anti-tamper sensor
  • LED status indicators
  • Flush or surface mount options
  • Conforms to IP66 rating

Specifications:

    Brand
    		 Access by Codelocks
    Clients - Smart Cards Up to 1000
    IP Rating
    		 IP66
    Finish
    		 Black
    Material
    		 Mixed Plastic and Alloy
    Lock Dimensions 2" x 4 1⁄16" x 5⁄8"
    Orientation
    		 Vertical
    Suitable
    		 Internal, External
    Supported Cards
    		 MIFARE® Classic 13.56MHz 14443-3 Type A, MIFARE® DESFire® 13.56MHz ISO/IEC 14443 A 1-4, MIFARE Ultralite® 13.56MHz ISO/IEC 14443 A 1-3
    Voltage 12-24V DC
    Idle Current 20mA
    Working Current 80mA
    Inputs/Outputs Relay, Push-to-Exit
    Read Range 60mm (23 /8”)
    Temperature -30°C ~ 60°C (-22°F ~ 140°F)
    Humidity 10%RH ~ 98%RH
    User Types
    		 Card
