CDL-CL2200

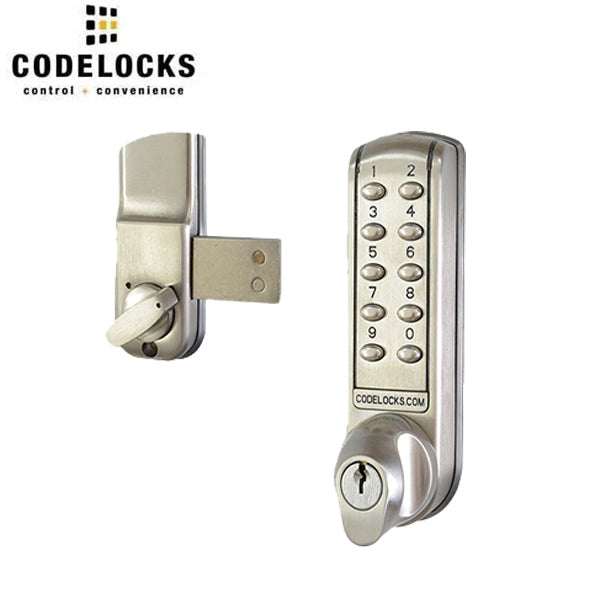

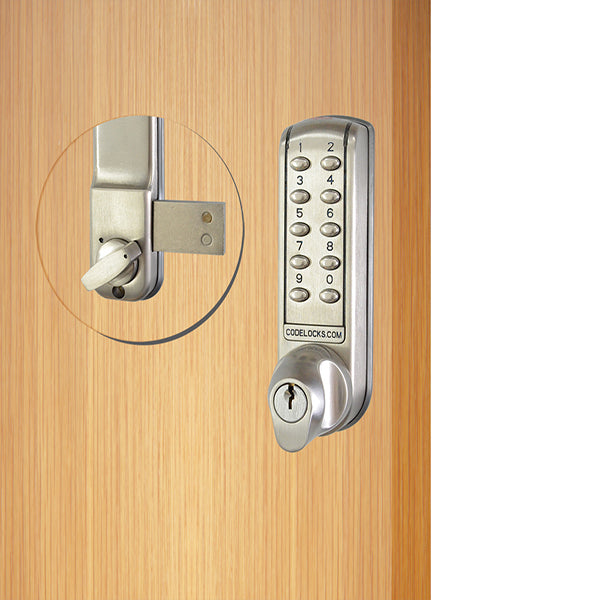

The CL2200 is a medium duty electronic lock. The bolt slides on the inside surface of the door to lock or unlock.  The bolt is moved manually by means of the outside knob after the code is entered, and freely by the inside knob at all times.
When a valid code is entered and the blue LED lights burn, the knob will retract the bolt. The key will open the door for management functions. Code Free Mode can be programmed at the keypad using the Master Code.

Features

• Surface deadbolt
• Rapid retrofit for basic single code mechanical locks
• On door programming via Master Code in seconds
• Allows up to 80 User Codes
• Allows up to 10 One-Time User Codes
• Over 80,000 operations from 2 x AA cells (supplied)
• Non handed
• PVD low maintenance finish
• Key override as standard

Specifications

Brand	Codelocks
Buttons	2 x 5 + Programming
Code Change Method	Keypad (On Door)
Codes	Allows up to 10 one time User Codes 4, 5 or 6 digits long
Door Thickness	1 3⁄8" - 2 3⁄8" (35mm - 60mm)
Finish	Brushed Steel
Handed	Non-Handed - Locks will fit doors hung on the left or right
Keypad	12 Individual stainless steel buttons
Latch Type	Surface Deadbolt
Lock Material	Zinc Alloy
Low Battery Warning	Red LED will flash on opening to indicate low battery
Memory	Stores up to 80 User Codes
Operations	Up to 80,000 operations per 2 x 1.5v AA batteries
Orientation	Vertical
Power	2x AA
Spindle	Flat bar spindle, 5⁄16" (8mm) adaptor supplied
Suitable For	Internal, External
User Types	Code



 Dual Backset Latch 2 3/8" - 2 3/4"
