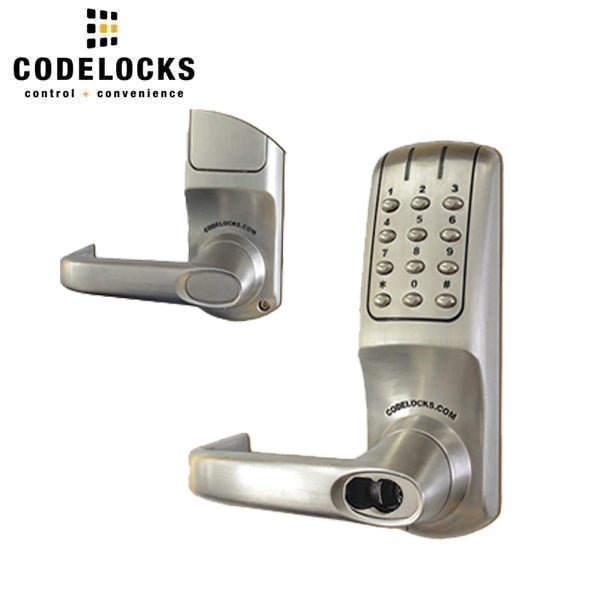

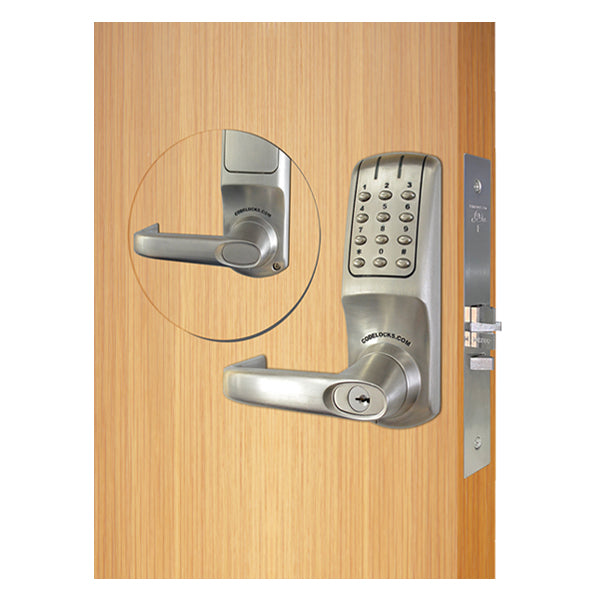

CDL-CL5250

The CL5250 has a conventional 3x4 button keypad layout for instant familiarity, providing quick programming with a multiple range of functions. Medium duty tubular latch retracts via the outside knob after a valid code input. When the door closes, the spring latch will lock the door. Particularly suitable for use in health, educational, commercial and residential environments.

Features

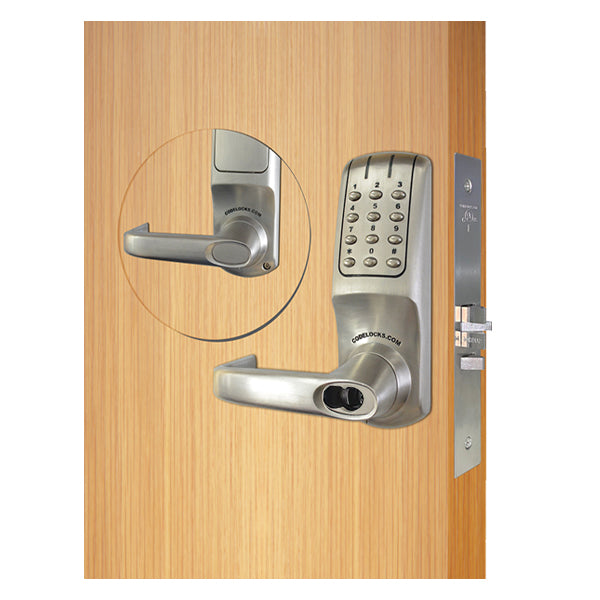

• Optional IC Cylinder Prep: Prepped to receive a Small Format Interchangeable Core. SFIC Core is not included.
• Allows up to 80 User Codes
• Allows up to 10 one-time User Codes to be entered
• PVD low maintenance finish
• Brushed Steel finish
• Over 200,000 operations from 4 x AA cells (provided)
• Tamper time out and low battery warning
• Connections for remote release by reception desk button
• Alarm release included
• Code Free entry
• Lever handle lock for doors hung on the left or right
• Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home

Specifications

Brand	Codelocks
Buttons	3 x 4
Code Change Method	Keypad (On Door)
Codes	User Codes 4, 5 or 6 digits long
Door Thickness	1 3⁄8" - 2 3⁄8" (35mm - 60mm)
Finish	Brushed Steel
Handed	Non-Handed - Locks will fit doors hung on the left or right
Keypad	12 Individual stainless steel buttons
Latch Type	Mortise Latch
Lock Material	Zinc Alloy
Low Battery Warning	Red LED will flash on opening to indicate low battery
Memory	Stores up to 80 User Codes
Operations	Up to 200,000 per set of 8 x AAA batteries
Orientation	Vertical
Power	4x AA
Spindle	Two part 5⁄16" (8mm) spring loaded spindle
Suitable For	Internal, External
User Types	Code
Fire Rated	3-hour UL 10C
Certifications	Grade 2 ANSI A156.2 / A156.25, UL/ULC





Downloads:

• Data Sheet
• Installation Instructions
