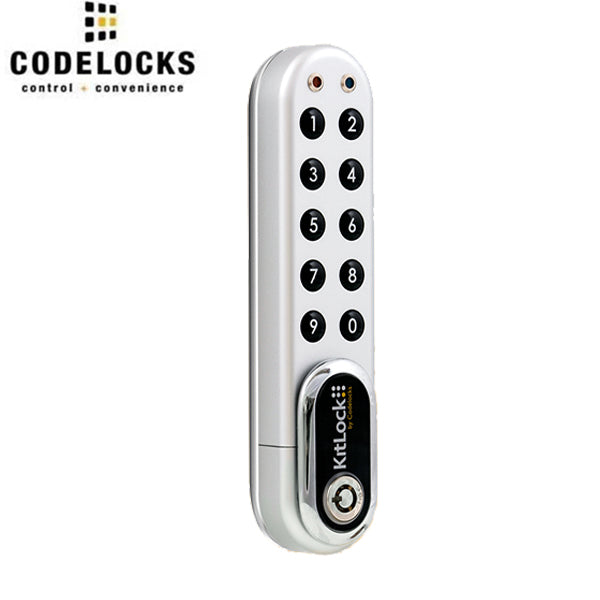

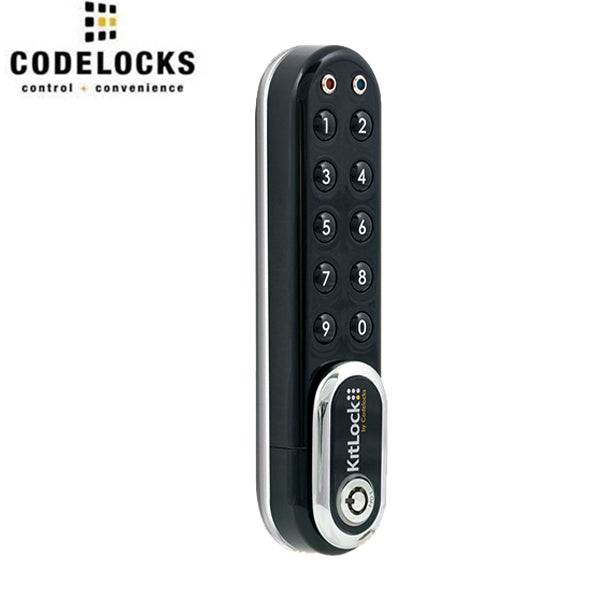

CDL-KL1000-G3-NET

Introducing the KL1000 G3 NetCode® designed through the evolution of our best-selling KitLock, the KL1000. Boasting popular features from the KL1000 Classic+ including 20 User Codes, 24hr countdown timer1 and introducing key override. The KL1000 G3 NetCode® has key override and front battery change capabilities, providing ease of use and peace of mind. The updated chrome effect back panel and handle finishes reflect their surroundings giving the lock a slimmer, more subtle aesthetic.

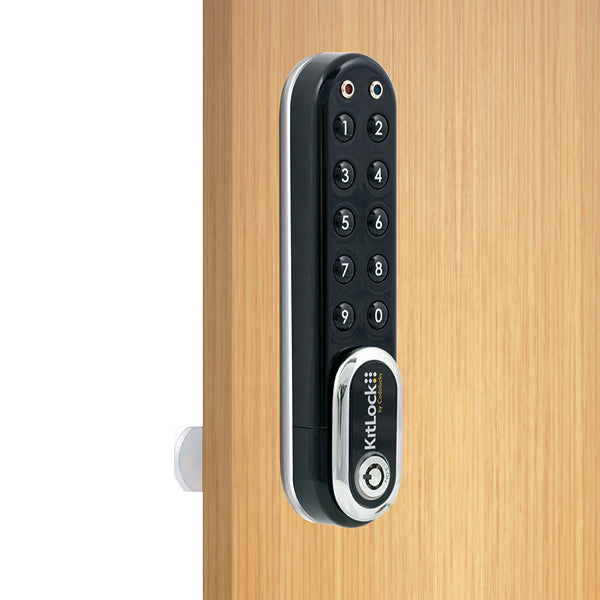

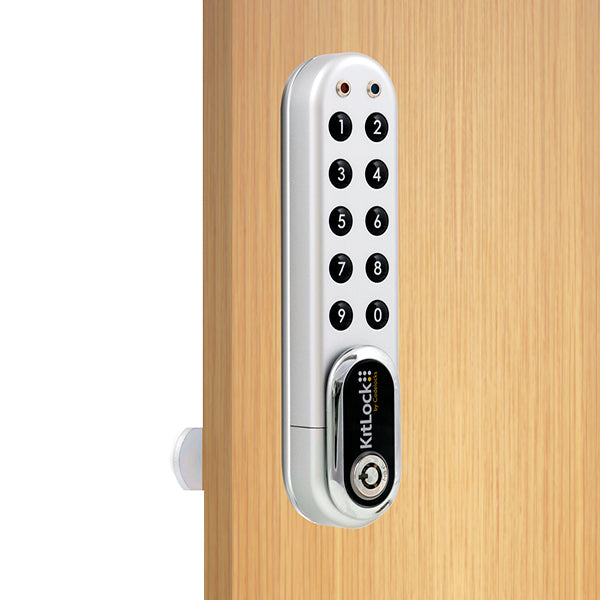

This compact digital lock is ideal for replacing keyed cam locks commonly supplied on a wide range of lockers, cabinets and cupboards. Sharing the same fittings & fixings as the KL1000 Classic this lock is easily retrofitted, ideal for upgrading existing installations.

Codelocks NetCode® Technology
The KL1000 G3 NetCode® utilises technology allowing generation of date and time-sensitive temporary coded access: NetCode®. Once generated, a NetCode® can be shared via email or SMS2, and will expire after their set duration - ideal for visiting service engineers, delivery personnel and short / medium-term locker rental.

NetCode® Pricing

To generate a NetCode®, you will need to purchase a credit pack. 1 NetCode® or 1 SMS = 1 Credit. NetCode® Credit pricing can be found here.

Please Note: When you register for a Codelocks Connect Portal account you will receive 20 free credits.

Features:

• Date/time specific code generation
• Send generated codes via email or SMS²
• No WiFi connection required
• Easy install or retrofit
• Front battery change
• Key Override
• Battery Override
• Private, Public + NetCode^® Functions
• Up to 20 User Codes
• Auto-unlock after a set time
• Slam latch accessory available

Front Battery Change
The KL1000 G3 NetCode® battery compartment can be accessed via the front of the lock. Entering a valid code and turning the handle reveals a security screw which, once removed, allows the cover to slide up and batteries to be replaced.

24hr Auto-Unlock Countdown Timer
When operating in Public Function, the KL1000 G3 NetCode® can be programmed to auto-unlock between 1 and 24 hours after locking1, saving valuable locker management time.

Up to 20 User Codes
The KL1000 G3 NetCode® offers up to 20 unique 4 digit User Codes when operating in Private Function, thus allowing a single cabinet to be accessed by multiple users.

---

Private Function

This function is used where the same code will be repeatedly used, e.g. an employee with the same locker/drawer in the workplace.

Public Function

This is the default function and is already pre-programmed in new locks. In this function the KitLock operates with a single User Code. The user enters a personal four digit code, this locks the lock. The same code is entered once only to open the lock before automatically being erased and ready for the next user. This function is used for short term, multiple occupancy applications, e.g. hot desking in an office or a locker in a sports club.

---

Specifications:

Brand	KitLock by Codelocks
Codes	8-digit Master and Sub-Master Code, 6-digit Technician Code, 20 4-digit User Codes
Countdown Timer	Open after X hours
NetCode	Available via the App or online Portal
Battery Override	A 9 volt PP3 battery can be placed against external contacts
Code Change Method	Keypad (On Door)
Buttons	2 x 5 + Programming
Door Thickness	Ready to fit doors up to 1" (25mm)
Memory	Non-volatile memory will be retained
Finish	Silver Chrome, Black Chrome
Functions	Private, Public
Keypad	11 individual round buttons
Lock Dimensions	5 3⁄8" (136mm) x 11⁄16" (28mm) x 15⁄16" (33mm)
Low Battery	Red LED will flash on opening to indicate low battery
Material	Mixed Plastic and Alloy
Latch Type	Cam, Slam Latch
Operations	Up to 100,000 operations per 2 x AAA batteries
Spindle	Fitted with 15⁄16" (24mm) spindle as standard, optional 3⁄8" (10mm) and 11⁄8" (29mm) spindles supplied
Power	2x AAA
Orientation	Vertical, Left Handed, Right Handed
Suitable For	Internal, External
User Levels	Master, Sub Master, Technician, Use
User Types	Code





Downloads:

• Brochure
• Installation Instructions
