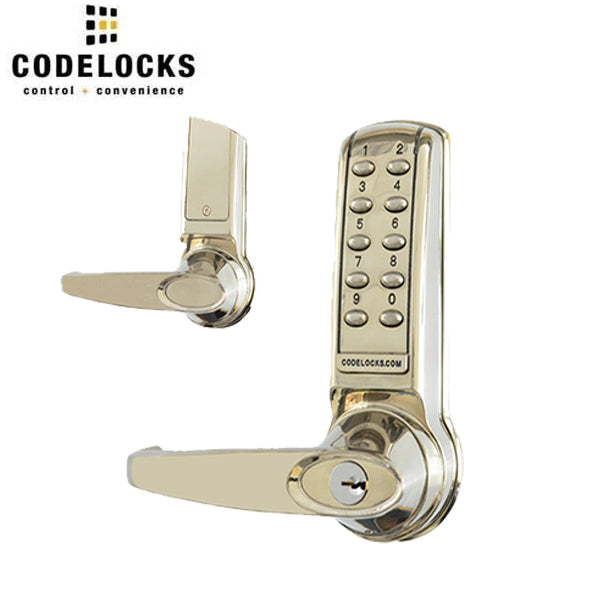

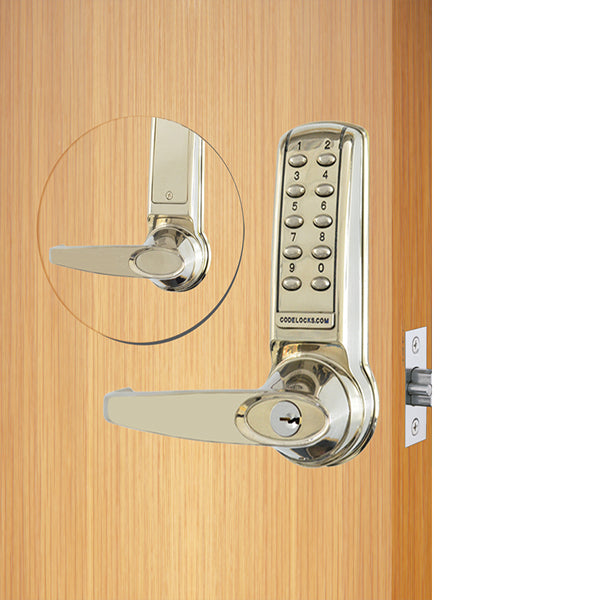

CDL-CL4210

The outside lever turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights, the lever will retract the latchbolt. When the door closes the spring latch will automatically lock the door. The key will open the door for management functions. The key may be used to set the lock into Code Free mode so that anyone can open the door without using a code. Code Free Mode can also be programmed at the keypad using the Master Code.

Features

• Mortise Latch
• Lever and knob handles available
• Over 200,000 operations from 4 x AA cells (supplied)
• Tamper time out and low battery warning
• Connections for remote release
• Alarm release included
• Internal and external applications
• Suited for residential, commercial and non-commercial

Specifications

Brand	Codelocks
Buttons	2 x 5 + Programming
Code Change Method	Keypad (On Door)
Codes	User Codes 4, 5 or 6 digits long
Door Thickness	1 3⁄8" - 2 3⁄8" (35mm - 60mm)
Finish	Stainless Steel
Handed	Non-Handed - Locks will fit doors hung on the left or right
Keypad	10 Individual stainless steel buttons
Latch Type	Mortise Latch
Lock Material	Zinc Alloy
Low Battery Warning	Red LED will flash on opening to indicate low battery
Memory	Stores up to 80 User Codes
Operations	Up to 200,000 per set of 4 x AA batteries
Orientation	Vertical
Power	4x AA
Spindle	Two part 5⁄16" (8mm) spring loaded spindle
Suitable For	Internal, External
User Types	Code
