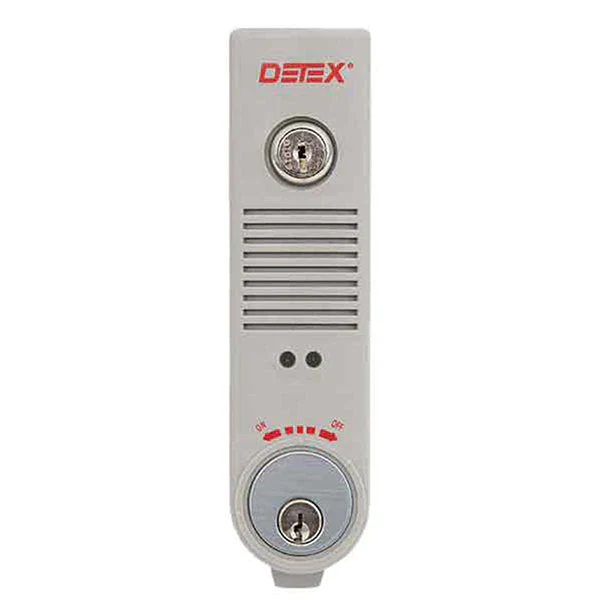

The Detex EAX-500 Series is designed for applications requiring a battery-powered alarm on secured doors. The alarm, with approximately 100dB, will sound when an unauthorized exit occurs. The redesigned shape and smaller size of the EAX-500 makes it the ideal choice for quick and easy installations on emergency exit and restricted doors.

Features

• Low cost, self-contained door alarm with piezo horn that sounds to warn unauthorized use of a door or gate
• Tapered cover allows for installation on narrow stile doors
• Intelligent circuit senses the external magnet location automatically and sets the correct door handing
• Alarm can only be silenced by proper control key
• 100 dB piezo alarm
• Secure, tamper resistant housing
• 9VDC battery operated with Low Battery Alert
• LED visual and audible arming indicators

Features

Style	Exit Alarm
Alarm	100dB Piezo Alarm
Battery	9V battery
Mounting	Surface Mount
Cylinder	Keyed Different
Finish	Gray

Downloads:

• Installation Instructions
• Catalog
