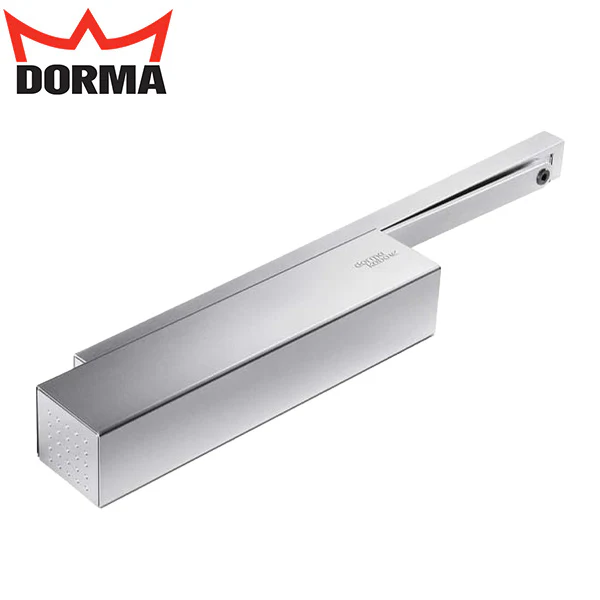

Representing the pinnacle of door closer systems with its unique cam and roller design. Doors equipped with the TS93 will open much easier than doors with rack and pinion closers with track arms. The TS93 is a closer with regular arm operating efficiency and track arm aesthetics. When necessary, the push-side installation provides the benefits of track arm assemblies with the closer mounted to the door and the track mounted to the stop, creating a more tamper-resistant application. Install the TS93 closer body on the door and the track arm assembly on the stop surface with the supplied bracket for push-side (PT) applications. The TS93 will be non-handed.

Adjustable Spring sizes for barrier-free requirements

The TS9315 will be available with field adjustable spring power from size 1 to 5 for barrier-free requirements.

Valves

The TS93 will have two separate temperature compensating, noncritical adjustment valves to control sweep and latch closing speeds.

Adjustable Hydraulic delayed action and backcheck

Adjustable backcheck will take effect at approximately 65° and the adjustable hydraulic delayed action will be effective from 120° to approximately 70°.

More Information Below:

•


Features:

• Available as tS9315 closers for interior and exterior barrier free requirements (adjustable size 1-5).
• Adjustable backchecks prevent uncontrolled opening of the door.
• Adjustable delayed action extends the closing cycle to allow unobstructed passage through the opening.
• Optional hold open, adjustable for degree of hold open force. Hold open is selectable on or off.
• SN3 sex nuts supplied standard for 1-3/4" thick door.
• UL and CUL listed under their continuing reinspection programs.
• UL10C listed for positive pressure.
• Certified to the requirements of ANSI/BHMA A156.4 Grade 1.
• Meets the requirements of ANSI/BHMA A117.1 and ADA for barrier-free accessibility.
• California State Fire Marshall Approved (CSFM).
• 689/US28 Finish, Aluminum Painted
