DMGL-1200DD

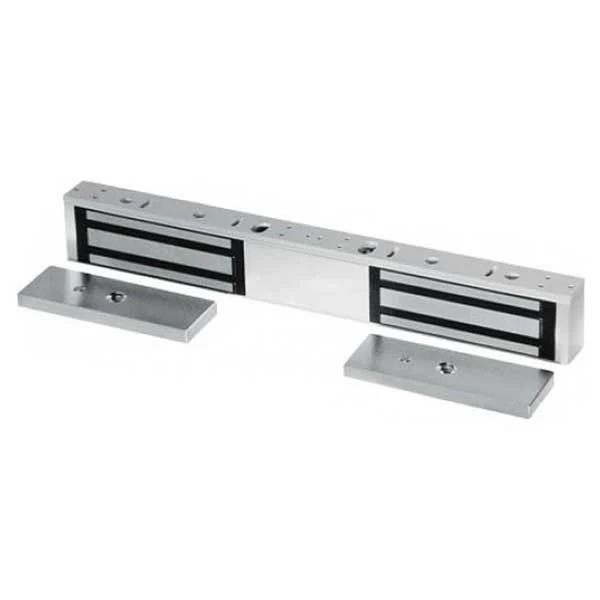

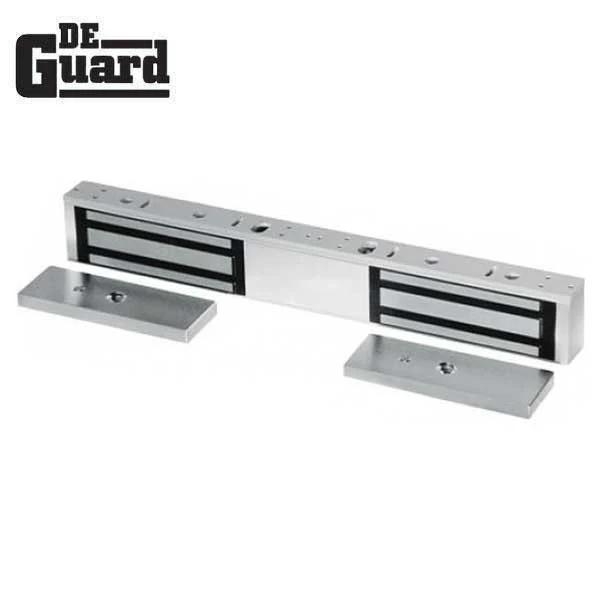

The Surface Mounted Double Door 1200 Lb Electromagnetic Lock is used to secure the door in conjunction with push bars, request-to-exit devices, or credential readers. The locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door.

More Information Below

Applications	Can be used with any access control system
Doors	Double Door
Holding Force	1200-lb (544kg)
Operating Voltage	12 or 24 VDC±10% Selectable
Current Draw	500 mA at 12 VDC, 250 mA at 24 VDC
Operating Temperature	14º ~ 131º F (-10º ~ 55º C)
Electromagnet Dimensions	21" L x 2-7/8" H x 1-1/2" W
Armature Dimensions	7-1/2" L x 2-3/8" H x 5/8" W
Safety	Internal Voltage Spike Suppressor
Mounting	Adjustable mounting plate for easy proper installation
Bond Sensor	Yes bi-color LED signals when lock is magnetically secured



Downloads:

• ML Series Magnetic Lock Wiring Instructions
• Instructions for Electro Magnetic Locking Devices
