RCI - S6504 - Electrical Centerline Strike - Standard Profile - Brushed Stainless Steel - Grade 1
RCI - S6504 - Electrical Centerline Strike - Standard Profile - Brushed Stainless Steel - Grade 1

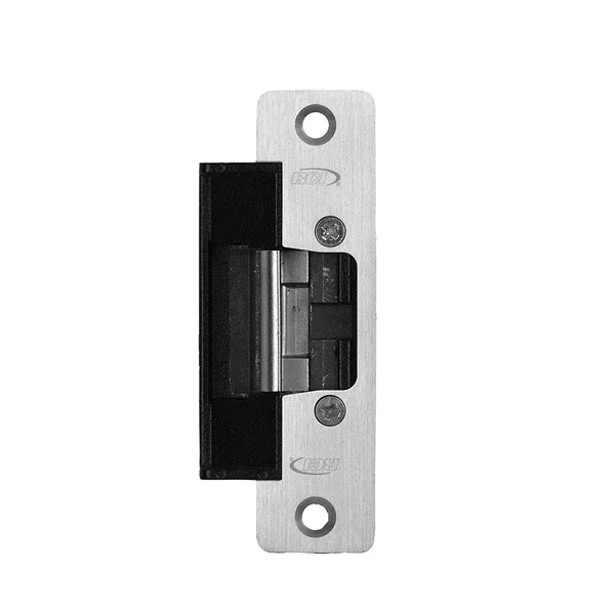

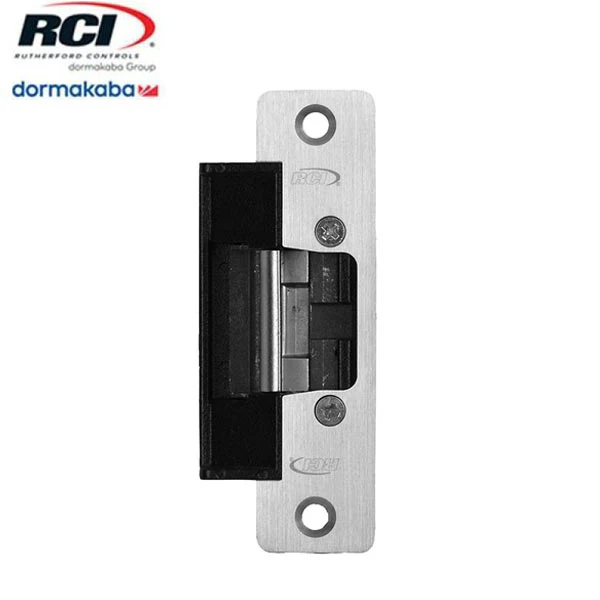

This is the RCI S6504-32D electric strike, used with centerline lock and exit devices. Standard features include a multi-voltage single solenoid, selectable lock mode, horizontal adjustment, and plug-in wire connectors. The ¼” horizontal adjustment makes installations faster and easier. Plus, with the RCI 6 series there will be less pressure on installer’s strike inventory, because these RCI strikes do it all.
Features:
- Plug-in wire connectors
- Trim plate included to cover up irregular frame cut-out
- Non-handed
- 1,500lb of Static force and 70ft-lb Dynamic force
- Factory tested to over 500,000 cycles of operation
- Field-Selectable Fail-Secure & Fail-Safe
Specifications:
| Type: | Electric Strike |
| Energy: | 375mA Field-Selectable 12/24VDC, 12-24VAC (At 12VDC) |
| Dimensions: | 1-1/4"W x 4-7/8"H (32mm x 124mm), ANSI Radius Corners |
| Latch Projection: | 3/4" (19mm) |
| Insert Depth: | 1-3/16"D (30mm) |
| Horizontal adjustment: | 1/4" (6.4mm) horizontal adjustment |
| Finish: | Brushed Stainless Steel |
| Certification: | -UL 294 Listed for Access Control Unit Accessory (6th Edition) -UL 1034 burglary-resistant Listed -Certified to ANSI/BHMA standard A156.31, Grade 1, endurance 500,000 cycles |
| Warranty: | 3-year limited warranty |
Downloads:
Original: $139.00
-65%$139.00
$48.65Product Information
