Rosslare - T65N - Piezoelectric Proximity & PIN Reader - Convertible - 125kHz EM RFID - 5-16VDC - IP68 - Natural
Rosslare - T65N - Piezoelectric Proximity & PIN Reader - Convertible - 125kHz EM RFID - 5-16VDC - IP68 - Natural

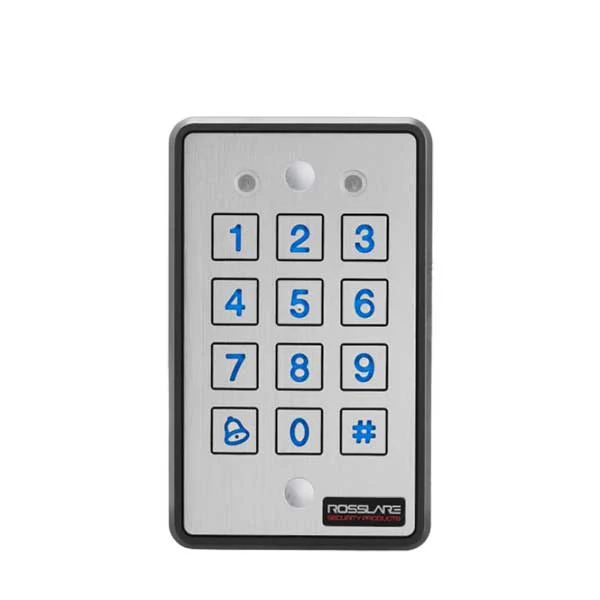

The AYC-T65N has a smooth metallic surface and high sensitive piezoelectric keys, now combined with illuminated digits and a proximity card reader makes this unit highly attractive for all-weather PIN & PROX access applications. Fully potted in a metal housing, the AYC-T65 offers an attractive yet durable solution for any need This unit can be operated as a keypad reader with any standard controller, and converts into a secure 500-user controller when connected to the PS-X25T intelligent power supply/relay unit.
Features:
- Supports 4- to 8-digit PIN credentials and 125 kHz EM type RFID cards and tags
- Smooth, attractive design, with all-weather indoor and outdoor operation
- Large, highly-visible unique illuminated piezoelectric keypad
- Optical back tamper detection output
- 2 tri-colored LEDs and an integral sounder for programming and operation
- User-friendly menu, based on LED and sounder indicators
- Back and cover optical tamper detection and output.
- Automatically recognizes a connection to PS-x25T intelligent power supplies and converts into a 500- user standalone controller with secure relays
Specifications:
| Operating Voltage Range: |
5–16 VDC |
| Input Current | 92 mA @ 12 VDC, |
| Input Current Max | 105 mA @ 16 VDC |
| Max Read Range | 40 mm |
| Modulation: | ASK at 125 kHz |
| Compatibility: | All 26-Bit EM Cards |
| Tamper: | Open collector, active low, 30 mA max sink current |
| Keypad: | 3x4 blue illuminated keys for local programming and 4- to 8-digit PIN codes entry |
| Design: | Epoxy-potted, fully-sealed in a rugged thin metal enclosure, highly strong construction and high sensitive piezoelectric keys. Suitable for extremely harsh environments. |
| LED Control: |
Dry Contact N.O. |
| Facility Code: | Programmable |
| Read Card Format: | Selectable Wiegand 26-Bit, Clock & Data |
| PIN Code Formats: | 8 selectable formats, from 1- to 8-digit length PIN Codes |
| Controller Capacity: | 500 users, single/dual PIN code each |
| User Levels: | Normal, Secure and Master |
| Security Modes: | Normal, Bypass and Secure |
| Rating: | Meets IP68 |
| Dimensions | 121 x 70 x 8 mm (4.77 x 2.76 x 0.31 in.) |
| Manufacturer's Warranty: | 5-Year Limited |
Downloads:
