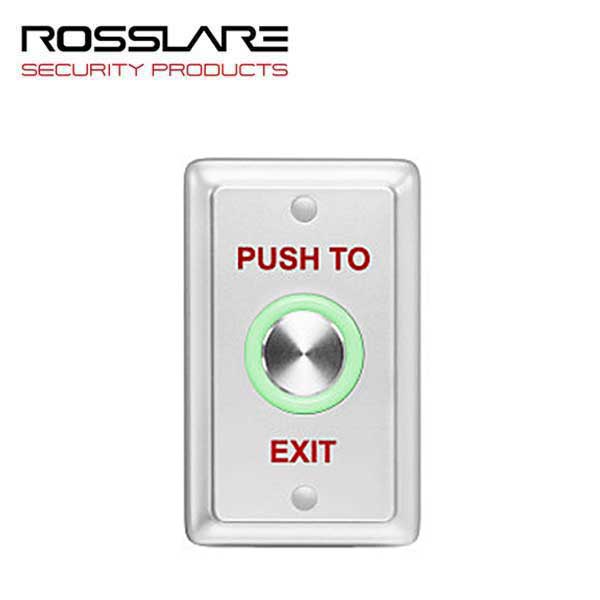

Rosslare - EXHO4 - Elegant Push Button Switch w/Light Ring - N.O. Piezo - 8-30 VDC
This elegant push button is a high quality piezoelectric switch. Designed with industrial and high-risk environmental requirements in mind, it is perfect for offices, shops, industrial installations, and more. The switch can be used in many hi-demanding applications, from heavy machinery and mechanical operation panels, to access control systems or direct door control.
This push button comes with no moving parts, is extremely reliable and resilient, yet is encased in an elegant design within a modern case suitable for use by architects and designers.
Features:
- Advanced soft touch piezoelectric switch
- New weatherproof design – water and dust proof
- Circuit assembly encapsulation
- No moving parts
- Mounting Method – Single Gang: Mounts directly to a US
- Light ring status indicator and accidental activation hindrance
- External LED control wire
Specifications:
| Type |
Piezo |
| Sensor / Switch Type |
Digital Toggle |
| Operating Voltage |
12-24 VDC |
| Led Type |
Ring |
| IP Rating | IP65 |
| Dimensions | 114 x 70 x 10 mm (4.49 x 2.76 x 0.39 in.) |
| Output Mode | Selectable Toggle or timed Pulse |
| Operating Temperature | -10˚C to 50˚C (14˚F to 122˚F) |
| Manufacturer's Warranty: | Limited Product Warranty |
