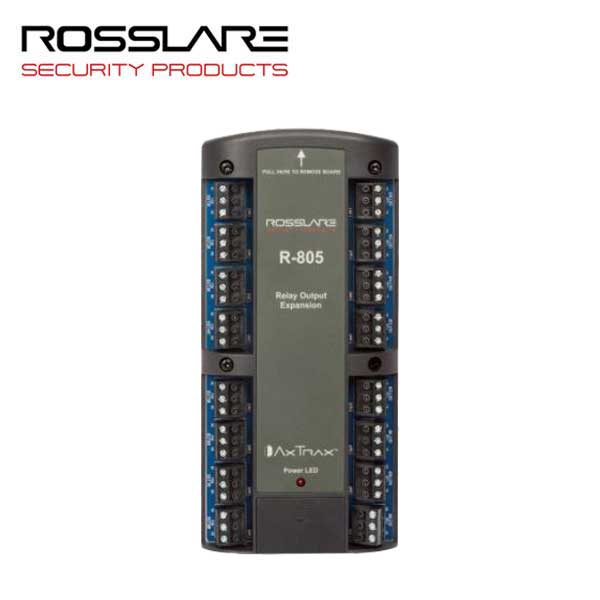

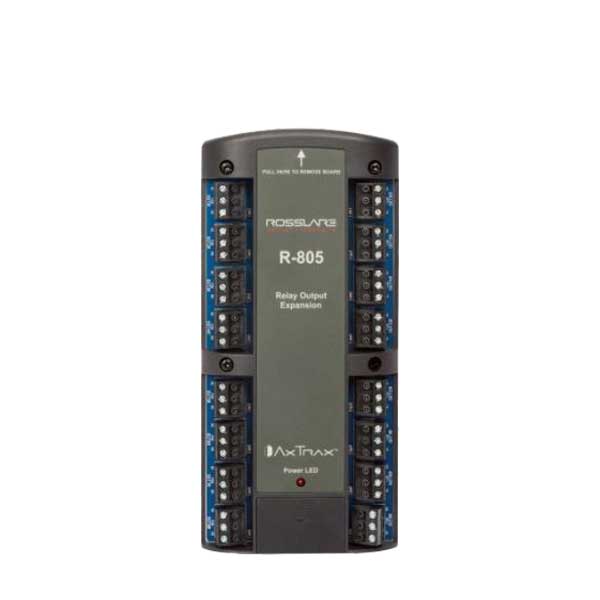

ROS-S-805

Expand the range and functionality of the AC-825IP with a series of expansion boards, featuring DIN rail and enclosure mounting options. The R-805 Expands the number of outputs featured on the AC8215, from just 6 to 16 outputs available.

Features:

• 16 Supervised Outputs
• For AC-825IP Controller




Specifications:

Enclosure:	ME-1515 (up to 2 R/S/D/P expansions)
Enclosure SMPS:	Input: 90 to 265 VAC, 50–60 Hz, Switch mode power management board Output: 12 VDC, 4 A
PCBA Input Power:	12 VDC, 2 A, regulated power management board
Battery Charger:	12 V sealed lead acid (SLA) up to 7 Ah
Relays 5 A, Form-C:	16
Inputs:	N/A
Readers (Wiegand+OSDP):	N/A
Connectivity:	OSDP
Board Dimensions:	7.0 x 3.4 x 1.1 in.
Enclosure Dimensions:	13.6 x 15.9 x 3.9 in.
Dimensions:	6.2 x 2.3 x 1.3 in.
Product Warranty:	2-Year Limited Product Warranty



Downloads:

Installation Guide
