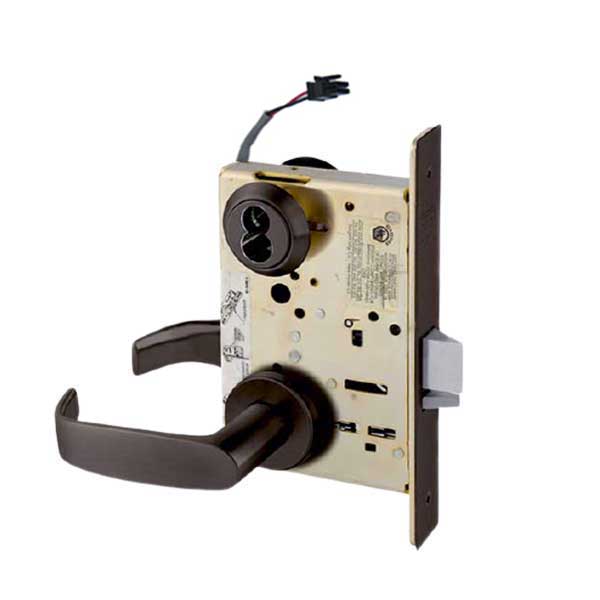

Sargent - 8271 - Electromechanical Mortise Lock - LN Rose / L Lever - Fail Secure - LFIC - 10BE - Dark Oxidized Satin Bronze - 24V - Grade 1
Sargent - 8271 - Electromechanical Mortise Lock - LN Rose / L Lever - Fail Secure - LFIC - 10BE - Dark Oxidized Satin Bronze - 24V - Grade 1
The Sargent 63-8271-LNL-24V-10BE Fail Secure mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.
Features
- Strong and Reliable
- Pre-assembled components make installation fool-proof
- Lock easily re-handed without removing parts or opening the lock case
- Only 30 degrees of lever rotation required to retract latch-bolt for easy operation
- Power ON, Locks outside lever
- Specify volage: 12VDC or 24VDC (operates from 12-24VDC)
- Key outside retracts latchbolt
- Lever outside retracts latchbolt, except when locked
- Lever outside can only be locked electronically
- Lever inside always retracts latchbolt
- Auxiliary deadlatch
Specifications
| Construction: | Heavy Duty Steel |
| Lock Function: | 71 - Fail Secure |
| Door Thickness: | 1-3/4" (44mm) |
| Backset: | 2-3/4" (70mm) |
| Faceplate: | 8" (203mm) x 1-1⁄4" (31mm) |
| Strike: | ANSI Standard A115.1; curved lip, non-handed |
| Strike Height: | 4-7/8" |
| Frame Inner Dimension Requirements: | 8”L x 1-1/2”W x 1-1/2”D |
| Stile: | 4-1/2" |
| Power | Hard Wired |
| Operating Voltage | 24VDC |
| Amp Draw | 250 mA |
| Rose & Lever: | Standard LN Rose and L Lever |
| Cylinder: |
1-1/8" Brass LFIC |
| Keyway: | 6 Pin LFIC |
| Finish: | 10BE - Dark Oxidized Satin Bronze, Equivalent |
| Certifications: | UL / cUL Listed for 3-Hour Doors |
| Warranty: | 10-Year Manufacturer Warranty |
Downloads
