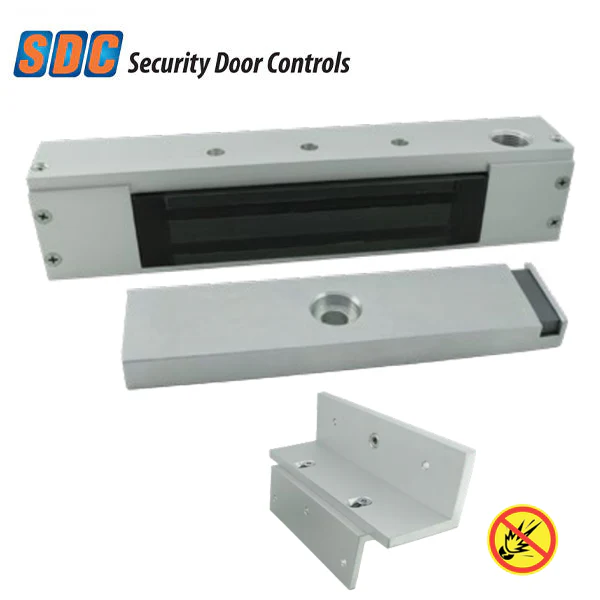

Product image 1
1 / 2

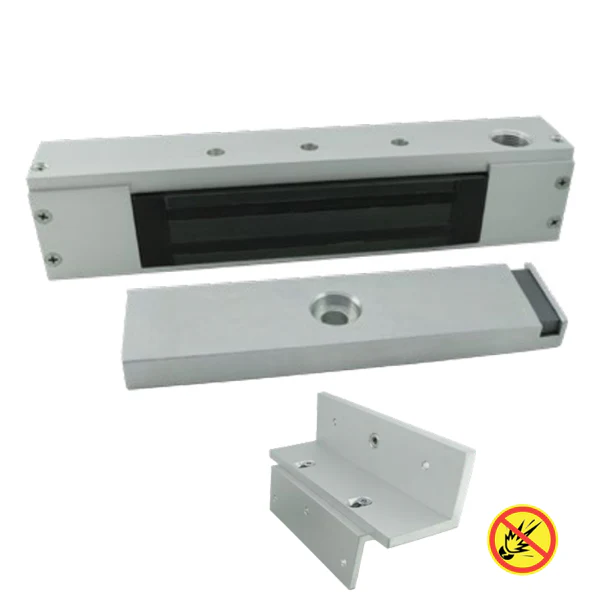

SDC - EP17624TJ - Explosion-Proof Electromagnetic Lock - Single - Top Conduit - 600lbs

SDC’s EP17624 Series Explosion-Proof Electromagnetic Locks are specifically designed for applications where flammable vapors are cause for concern, like clean rooms, chemical plants, or refinery environments by eliminating the sparks or arc in the magnetic lock.

Features:

  • Hazardous location design
  • Explosion-proof epoxy sealed
  • Corrosion-resistant
  • Conduit chamber with terminal block
  • Interlocking quick mount assembly
  • Voltage and current spike protection
  • Door position status (DPS)

    Model EP17624TJ
    Housing Aluminum
    Conduit Location Top
    Mounting Pull-Side,
    Top Jamb Z Bracket Included
    Holding Force 600 lbs
    Dimensions 101/2” x 2” x 13/4” Housing
    71/8” x 13/4” x 3/4” Armature
    Weight 10 lbs
    Input 24 VDC ± 10%
    Current Draw 250 mA
    Door Position Status (DPS) SPDT
    100 mA @ 30 VDC Resistive
    Certifications UL Classified for Hazardous Locations Class 1, Division 2
    Warranty 5 Year Manufacturer Warranty

    Downloads:

    Data Sheet

    $2,074.15
