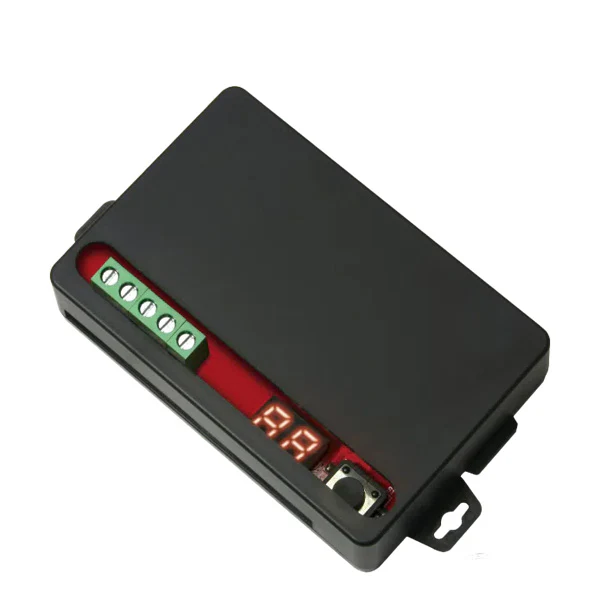

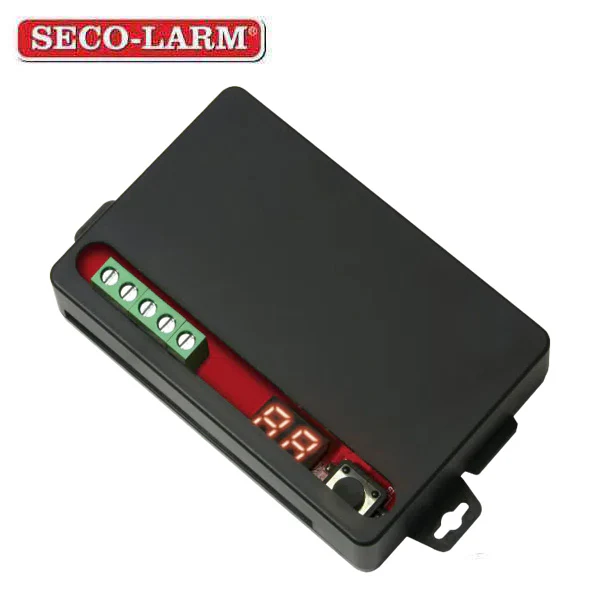

ENFORCER 1-Channel RF Receiver offers multiple independently controlled output modes to remotely control a variety of devices including garage doors, lights, motorized gates, lifts, and more. Now with dual-frequency support, it offers increased flexibility and compatibility with all ENFORCER 315 or 433.92MHz transmitters, both fixed and code-hopping CODEBUMP™ variants.

Features:

• Flexible 10~24 VAC/VDC operating voltage
• Simultaneously receive both 315 and 433.92MHz signals with an optional Extended Range Antenna  (SK-93ERSD)
• Range up to 500ft (150m) or up to 1,000ft (300m) with optional Extended Range Antenna (SK-93ERSD)
• Independently programmable channels and up to 15 transmitter button codes per channel
• Pushbutton programming, no jumpers to cut or switches to set
• 5 Output modes/channel - timed pulse (0.5~99sec), timed pulse (1~99min), toggle, latch, and follow (validity)
• Compatible with all ENFORCER SK-series transmitters of the receiver's base frequency and the optional Extended Range Antenna's frequency

Specifications:

Operating Frequency	315MHz
Memory Capacity	15 per channel
Operating Voltage	10~24 VAC/VDC
Operating Current	Standby: 16mA@12VDC, 12mA@24VDC Active: 60mA@12VDC, 50mA@24VDC (both per channel)
Relay Output Modes	Type: Independent, sequence, access control  Modes: 05~99 sec momentary (default, is) 1~99 min momentary, toggle, latch, follow (validity)
Relay Contacts	Number: 1  Rating: Form C 10A@14VDC
Connectors	Screw terminals, +, -, with NO/NC/COM per relay
Digital Display	2-digit, 7-segment LED
Operating Humidity	0~95%, non-condensing
Operating Temperature	40°~167°F (0°~75°C)
Dimensions	4-3/16"x7/8"x2-3/8" (107x23x60 mm)
