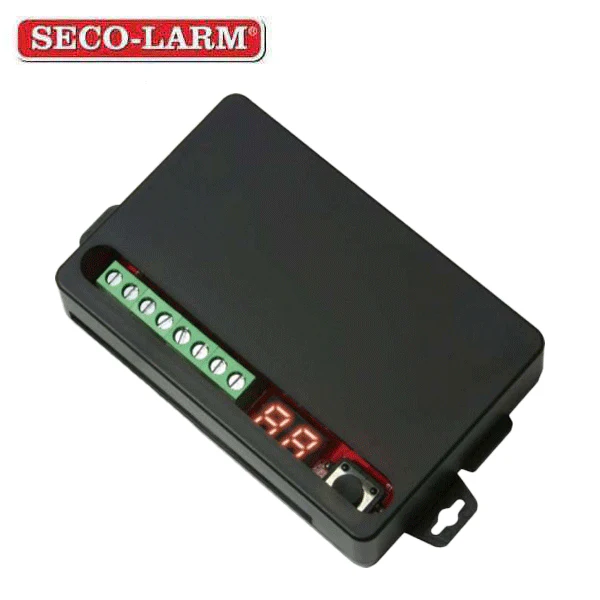

The Enforcer 2-Channel receivers offers multiple independently controlled output modes to remotely control a variety of devices including garage doors, lights, motorized gates, and more. Now with dual-frequency support, they offer increased flexibility and compatibility with all ENFORCER 315 or 433MHz transmitters, both fixed and code-hopping CODEBUMP variants.

Features:

• Flexible 10~24 VAC/VDC operating voltage
• 5 relay output modes per channel - 0.5~99-second timed pulse, 1~99-minute timed pulse, toggle, latch, follow (validility)
• Simultaneously receive 315.
• Range: * Up to 500ft (150m)
• Independtly programmable channels and up to 15 transmitter button codes per channel
• Pushbutton programming, no jumpers to cut or switches to set
• Compatible with all ENFORCER SK-series transmitters of the receiver's base frequency.

Specifications:

Operating Frequency	315MHz
Memory Capacity	15 transmitter button codes per channel;
Operating Voltage	10~24 VAC/VDC
Current Draw (max.)	Standby: 16mA@12VDC Active: 60mA@12VDC (per channel)
Relay Contacts	Form C, 10A@14VDC
Relay Output Functions	0.5~99 seconds timed, 1~99 minutes timed, toggle, latch, validity (follow)
Programming	With single tactile button accessible from outside
Convenient housing	Accessible programming button
LED Indicator	2-digit, 7-segment LED display
OEM / private label ready	Yes
Antenna	Built-in: Hidden, internal Extended range*: Simple plug in
RF Range	Up to 500ft (150m)
Certifications	FCC, IC, RoHS
Dimensions	4-7/32" x 7/8" x 2-3/8" (107x23x60 mm)
Operating Temperature	-40°~167°F (-40°~75°C)
Operating Humidity	0~95% non-condensing
