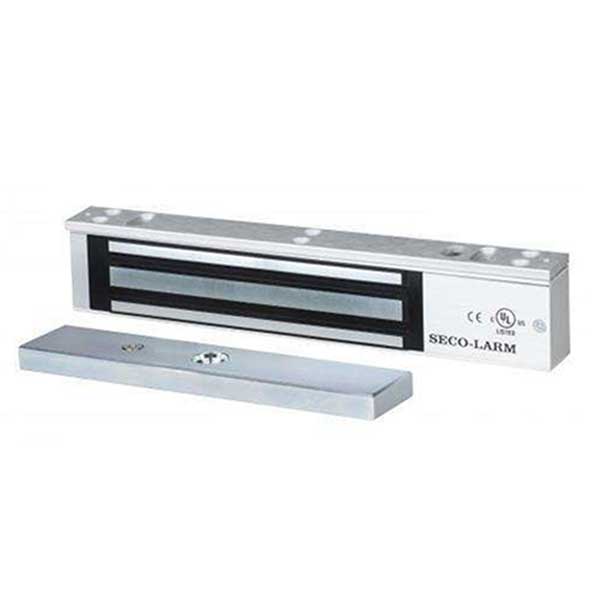

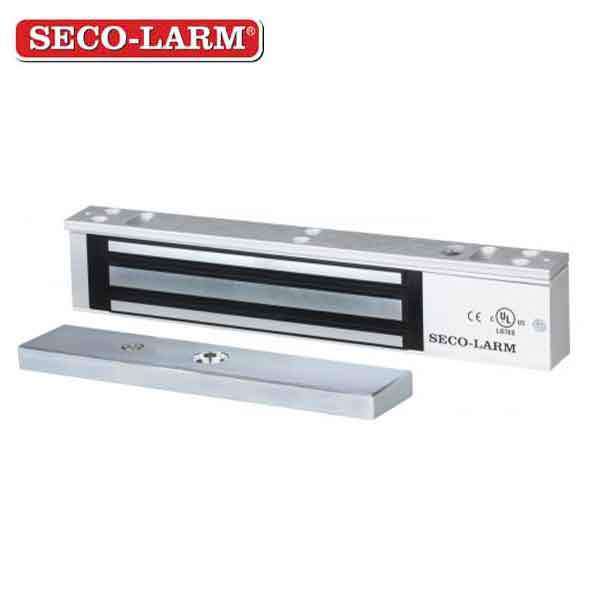

Seco-Larm - Single Door Maglock - 600 lb Holding Force - UL Listed
The E-941Sx series of electromagnetic locks is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism.
Features:
- Anodized aluminum housing (US 28)
- 12 or 24 VDC (selectable)
- No residual magnetism
- Adjustable mounting bracket
- MOV surge protection
-

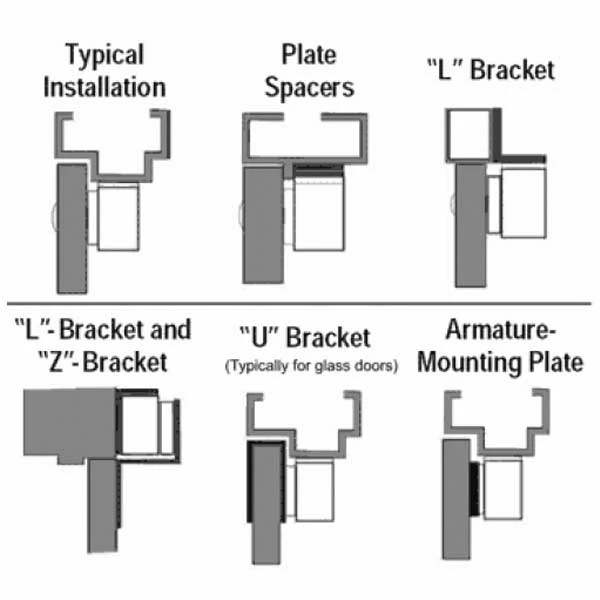

Complete mounting hardware for
typical installations - Detachable face plate
- UL and ULC listed
- CE listed
- LIFETIME LIMITED WARRANTY
- RoHS compliant
Specifications:
| Holding Force | 600-lb (272kg) |
| Operating Voltage | 12 or 24 VDC |
| Current Draw | 500mA@12VDC, 250mA@24VDC |
| Operating Temperature | 32°~120° F (0°~49° C) |
| Electromagnet Dimensions | 9-13/16″x1-11/16″x1″ (250x43x25 mm) |
| Armature Dimensions | 7-1/4″x1-1/2″x1/2″ (185x38x12 mm) |
| Case Shipping Weight | 47-lb (22kg) |
| Weight | 4-lb 6-oz (2kg) |
| Case Quantity | 10 pcs |
Downloads:
$114.56
Seco-Larm - Single Door Maglock - 600 lb Holding Force - UL Listed—
$114.56
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The E-941Sx series of electromagnetic locks is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism.
Features:
- Anodized aluminum housing (US 28)
- 12 or 24 VDC (selectable)
- No residual magnetism
- Adjustable mounting bracket
- MOV surge protection
-
Complete mounting hardware for
typical installations - Detachable face plate
- UL and ULC listed
- CE listed
- LIFETIME LIMITED WARRANTY
- RoHS compliant
Specifications:
| Holding Force | 600-lb (272kg) |
| Operating Voltage | 12 or 24 VDC |
| Current Draw | 500mA@12VDC, 250mA@24VDC |
| Operating Temperature | 32°~120° F (0°~49° C) |
| Electromagnet Dimensions | 9-13/16″x1-11/16″x1″ (250x43x25 mm) |
| Armature Dimensions | 7-1/4″x1-1/2″x1/2″ (185x38x12 mm) |
| Case Shipping Weight | 47-lb (22kg) |
| Weight | 4-lb 6-oz (2kg) |
| Case Quantity | 10 pcs |
Downloads:
