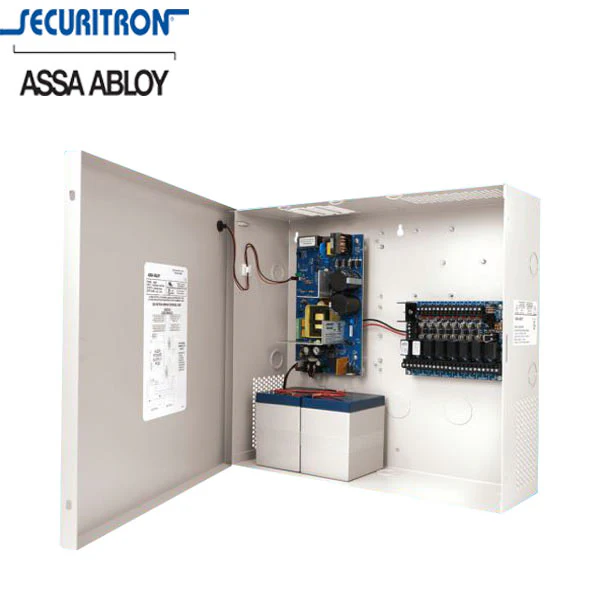

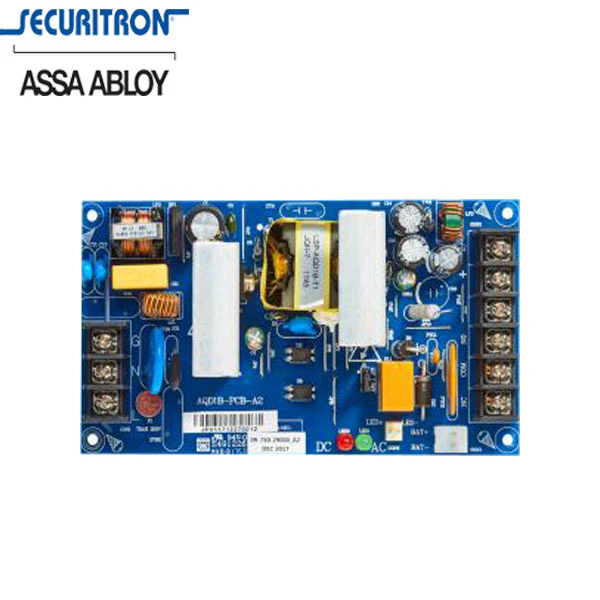

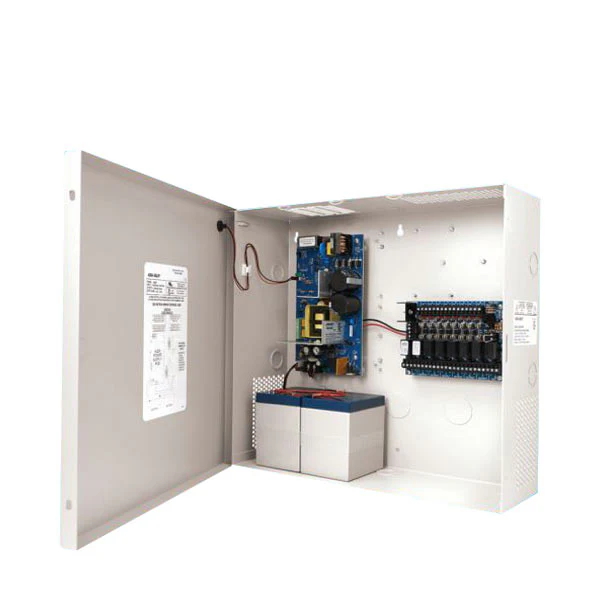

The Securitron AQD1 Series of switching power supplies are dual voltage, UL listed,
supervised units. These units are field selectable with an integrated battery charging
circuit. They provide 1 Amp at 12VDC or 24VDC continuous, with up to 16 independently controlled power limited outputs.

Features:

• Typical output: 13.5 / 27.2 VDC
• Low noise design with ripple as low as 68mV p-p
• Power supply outputs are Class 2 power limited
• Expandable up to 16 independently controlled power limited outputs
• Available with configurable access control input/outputs with fire trigger in either PTC or with fuse/dry contact option, fire relay only, or configurable outputs with fire relay input
• LED indicators and form "C"contacts for supervision
• Supports up to two (2) sealed gel, AGM or wet lead acid batteries

Specifications:

Downloads:

• Spec Sheet
• Instruction Sheet
