Trine - 002 - 8-16VAC / 4-6VDC - 00 Series - Electric Strike - Dark Bronze Powder Coated

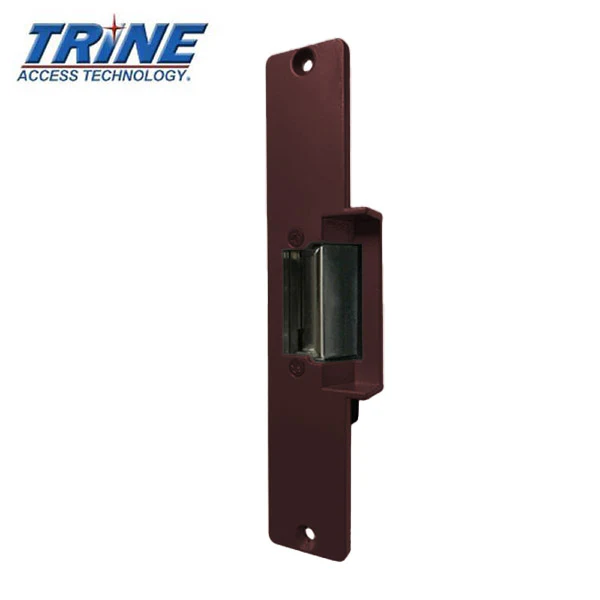

Product image 1
1 / 2

Trine - 002 - 8-16VAC / 4-6VDC - 00 Series - Electric Strike - Dark Bronze Powder Coated

TRN-002-8-16

For use in new or replacement installations in wood and metal jambs Auxiliary lever ramps, or use with locksets which contain dead locking levers. Use with locksets having up to 5/8” throw, based on 1/8” door gap.

Features:

  • Use with locksets having up to 5/8" throw, based on 1/8" door gap.
  • Face Plate 7-15/16" x 1-7/16"
  • Auxiliary Ramp 2-7/8"
  • Mortise Backset 1-9/16"
  • Cavity Depth 1/2"
  • Cavity Width 9/16"
  • Cavity Height 1-1/2"
  • Durability - 500,000 Life Cycles
  • Holding Force - 1000 lbs
  • Only 1 Moving Part in Locking Mechanism
  • Non-Handed Operation
  • Heavy Duty Latch Spring
  • Optional Finish - Aluminum, Dark Bronze

Voltage Amps Ohms (Ω) Duty Sound Wire Color
8-16VAC / 4-6VDC 1.3-2.7 1.4 Intermittent Buzz Black

Downloads:

$23.64

Original: $67.53

-65%
