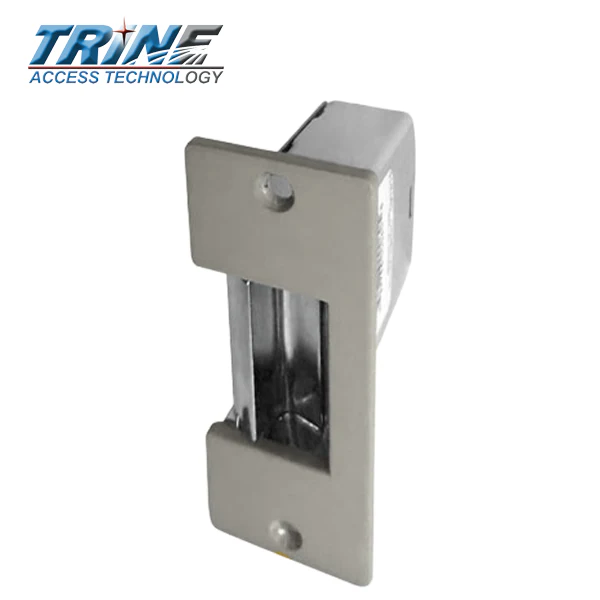

Trine - 005C - 3-1/2” Light Commercial Electric Strike - Intermittent - 24AC - Satin Chrome - Fail Secure-Standard Action - Grade 1
Trine - 005C - 3-1/2” Light Commercial Electric Strike - Intermittent - 24AC - Satin Chrome - Fail Secure-Standard Action - Grade 1
The Trine 005 3-1/2” Light Commercial Electric Strike For use in replacement installations in wood jambs and iron gates. Use with bored cylindrical locksets having up to 5/8” throw, based on 1/8” door gap.
Face Plate 3-1/2” x 1-3/8” -- Mortise Backset 2-3/4” -- Cavity Depth 1/2” -- Cavity Width 9/16” -- Cavity Height 1-1/2”
00 Series Features
- Durability - 500,000 Life Cycles
- Holding Force - 1000 lbs
- Only 1 Moving Part in Locking Mechanism
- Non Handed Operation
- Heavy Duty Latch Spring
- Black Wire Color
- Fail Secure-Standard Action (Unlocks with Power)
| Voltage | Amps | Ohms (Ω) | Duty | Sound | Wire Color |
|---|---|---|---|---|---|
| 24AC | 1.40 | 4.7 | Intermittent | Buzz | Red |
Downloads:
Dimensions
Original: $54.61
-65%$54.61
$19.11Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Trine 005 3-1/2” Light Commercial Electric Strike For use in replacement installations in wood jambs and iron gates. Use with bored cylindrical locksets having up to 5/8” throw, based on 1/8” door gap.
Face Plate 3-1/2” x 1-3/8” -- Mortise Backset 2-3/4” -- Cavity Depth 1/2” -- Cavity Width 9/16” -- Cavity Height 1-1/2”
00 Series Features
- Durability - 500,000 Life Cycles
- Holding Force - 1000 lbs
- Only 1 Moving Part in Locking Mechanism
- Non Handed Operation
- Heavy Duty Latch Spring
- Black Wire Color
- Fail Secure-Standard Action (Unlocks with Power)
| Voltage | Amps | Ohms (Ω) | Duty | Sound | Wire Color |
|---|---|---|---|---|---|
| 24AC | 1.40 | 4.7 | Intermittent | Buzz | Red |
Downloads:
Dimensions
